Iseki TS2202

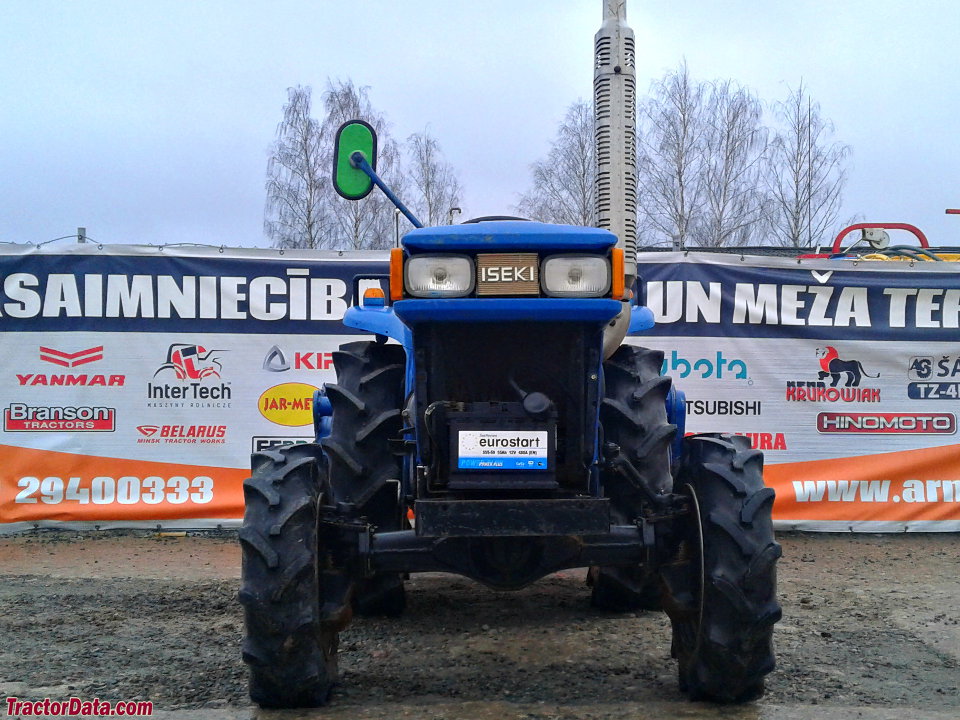

Iseki TS2202 tractor photo
1979 - ????
Compact Utility tractor
Production
Manufacturer:Iseki
Type:Compact Utility tractor
Variants
TS2202:4WD
TS2205:2WD
Iseki TS2202 Power
Engine:21.7 hp
16.2 kW
Iseki TS2202 Engine
Isuzu 1.2L 2-cyl diesel
Fuel tank:4.2 gal
15.9 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Cab:Open operator station.
Transmission:18-speed
Transmission details ...
Tractor hitch
Rear Type:JIS0
Power Take-off (PTO)
Rear RPM:540 (1.375)
Engine RPM:537@2300
711@2300
890@2300
1274@2300
Dimensions & Tires
Wheelbase:54.1 inches
137 cm
Weight:1874 lbs
850 kg
Front tire:6-14
Rear tire:8.3/8-22
Full dimensions and tires ...
