Fiat 70-76 Transmission


Fiat 70-76 tractor photo
1990 - 1992
76 Series
Orchard/Vineyard tractor
Series:60-7670-7680-76
Transmissions overview
12-speed partially synchronized
12-speed mechanical shuttle
20-speed creeper shuttle
Transmission
Type:partially synchronized
Gears:12 forward and 4 reverse
Clutch:279.4mm dry disc

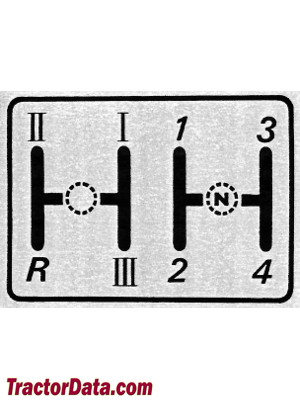

Four synchronized gears (1-4) in three ranges (I-III) plus reverse range. Tractor must be stopped, and clutch used, to shift range.
Speeds
With 12.4-28 rear tires.

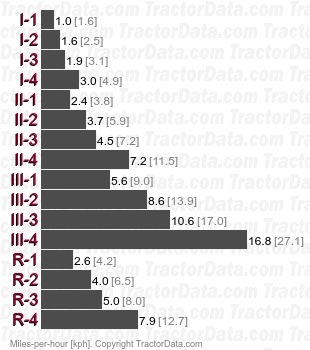

70-76  partially synchronized speeds
Transmission
Type:mechanical shuttle
Gears:12 forward and reverse
Clutch:279.4mm dry disc
Four synchronized gears (1-4) in three ranges (I-III) with mechanical reverser.
Speeds
With 12.4-28 rear tires.

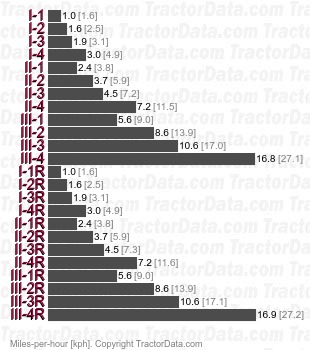

70-76  mechanical shuttle speeds
Transmission
Type:creeper shuttle
Gears:20 forward and 12 reverse
Clutch:254mm dry disc
Four synchronized gears (1-4) in three ranges (I-III) with mechanical reverser and creeper. The shuttle-creeper lever is moved forward or back for direction control. Pushing the lever down and forward engages the creeper range.
Speeds
With 12.4-28 rear tires.
70-76  creeper shuttle speeds
