Fiat 60-76 Transmission
|
|
| Transmission options | |
| 12-speed partially synchronized | |
| 12-speed mechanical shuttle | |
| 20-speed creeper shuttle |
| Transmission | |
| Type | partially synchronized |
| Gears | 12 forward and 4 reverse |
| Clutch | 279.4mm dry disc |
| Four synchronized gears (1-4) in three ranges (I-III) plus reverse range. Tractor must be stopped, and clutch used, to shift range. | |

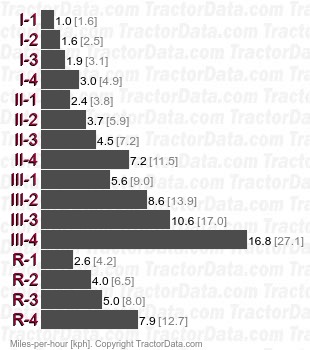

| Speeds | |
| With 12.4-28 rear tires. | |
|

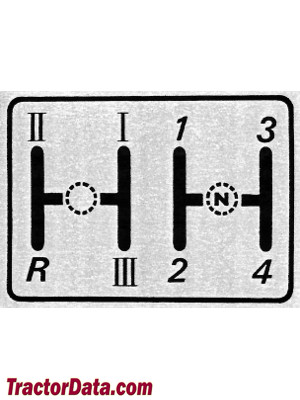

| Shift Pattern | |
 |
| Transmission | |
| Type | mechanical shuttle |
| Gears | 12 forward and reverse |
| Clutch | 254mm dry disc |
| Four synchronized gears (1-4) in three ranges (I-III) with mechanical reverser. | |

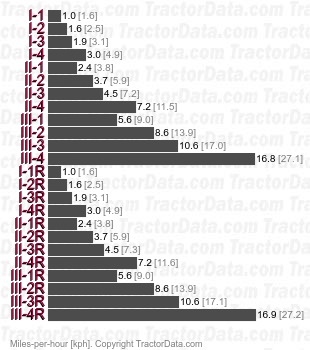

| Speeds | |
| With 12.4-28 rear tires. | |
|
| Transmission | |
| Type | creeper shuttle |
| Gears | 20 forward and 12 reverse |
| Clutch | 254mm dry disc |
| Four synchronized gears (1-4) in three ranges (I-III) with mechanical reverser and creeper. The shuttle-creeper lever is moved forward or back for direction control. Pushing the lever down and forward engages the creeper range. | |

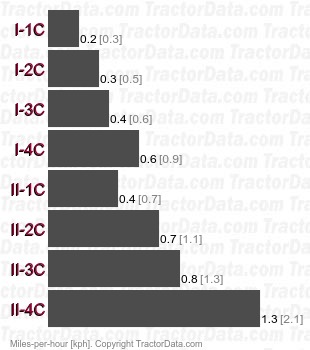

| Speeds | |
| With 12.4-28 rear tires. | |
|
