Tractors > CaseIH > Magnum 210

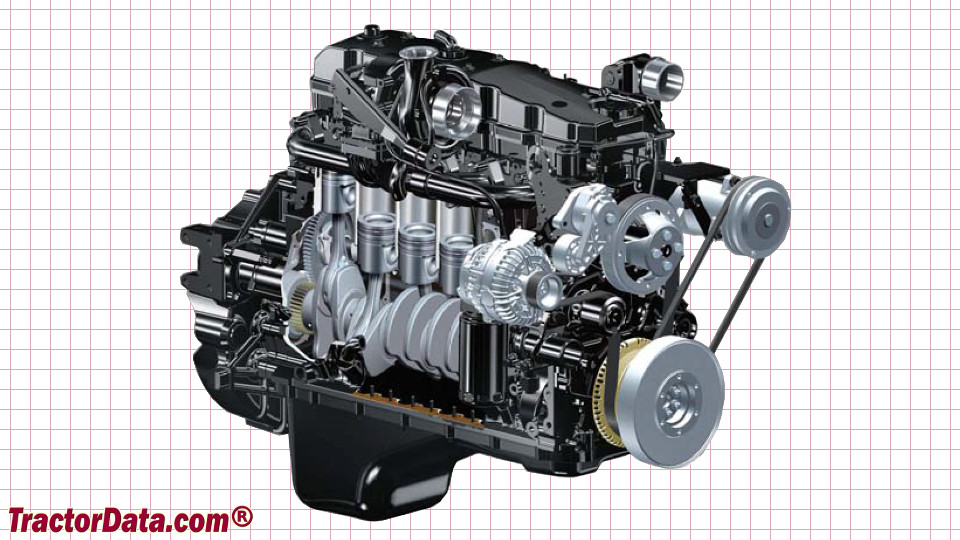

CaseIH Magnum 210 - engine

CaseIH Magnum 210 tractor photo
2009 - 2013   Magnum Series
Model years
Row-Crop tractor
Series next:CaseIH Magnum 225
Series back:CaseIH Magnum 190
more CaseIH Magnum 210 specifications...






Engine Detail:

 FPT
 turbocharged intercooled diesel
 6-cylinder 24-valve
 liquid-cooled
 410.6 ci [6.7 L]
Bore/Stroke:4.094x5.197 inches [104 x 132 mm]
Emissions:Tier 3
Power:210 hp [156.6 kW]
Maximum Power:260 hp [193.9 kW]
Fuel system:electronic high-pressure common rail
Cooling system:viscous fan
Rated RPM:2200
Starter:electric
Starter volts:12
Oil capacity:17 qts [16.1 L]
