    Ford 4610 - tests

    Ford 4610 tractor photo
    1982 - 1989
    Utility tractor
    Previous model:Ford 4600
    Smaller:Ford 3910
    more Ford 4610 specifications...






    Nebraska Tractor Test 1426:

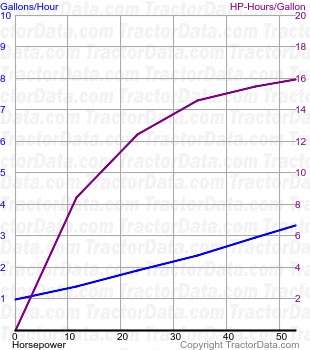

    4610 fuel use from test 1426
    Test Date:March 16 - April 1, 1982
    Type:Diesel 8x2 2WD
    PTO power (rated engine speed):52.52 hp [39.2 kW]
    PTO fuel use (engine speed):3.3 gal/hour [12.5 l/hour]
    PTO power (rated PTO speed):46.72 hp [34.8 kW]
    PTO fuel use (PTO speed):1.0 gal/hour [3.8 l/hour]
    Drawbar power (max):44.28 hp [33.0 kW]
    Drawbar fuel use (max):3.2 gal/hour [12.1 l/hour]
    Drawbar pull (max):6,402 lbs [2903 kg]
    Max pull gear:2
    Test report:PDF file


    Nebraska Tractor Test 1427:

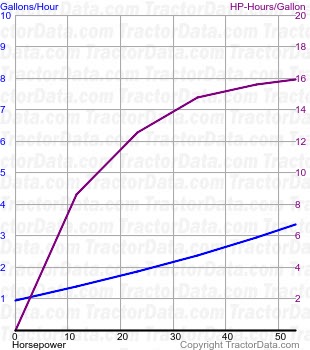

    4610 fuel use from test 1427
    Test Date:April 24 - May 15, 1982
    Type:Diesel 8x4 2WD
    PTO power (rated engine speed):52.32 hp [39.0 kW]
    PTO fuel use (engine speed):3.3 gal/hour [12.5 l/hour]
    PTO power (rated PTO speed):47.30 hp [35.3 kW]
    PTO fuel use (PTO speed):2.8 gal/hour [10.6 l/hour]
    Drawbar power (max):43.17 hp [32.2 kW]
    Drawbar fuel use (max):3.2 gal/hour [12.1 l/hour]
    Drawbar pull (max):6,534 lbs [2963 kg]
    Max pull gear:2
    Test report:PDF file
