Tractors > Ford > 3930

Ford 3930 - transmission

Ford 3930 tractor photo
1990 - 2002   30 Utility Series
Utility tractor
Previous model:Ford 3910
Series next:Ford 4630
Series back:Ford 3430
more Ford 3930 specifications...






Transmission:

Gears:8 forward and 2 reverse
Clutch:dry disc
Speeds:

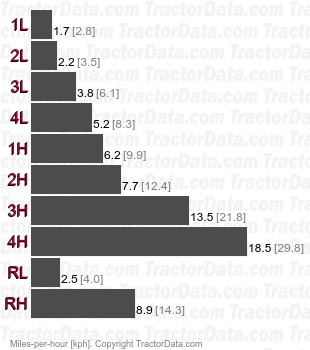

3930   speeds


Transmission:

Type:synchronized shuttle
Gears:8 forward and reverse
Clutch:dry disc
Speeds:

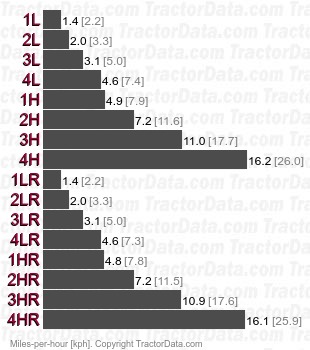

3930  synchronized shuttle speeds


Transmission:

Transmission:Dual-Power
Type:partial power shift
Gears:16 forward and 8 reverse
Clutch:dry disc
Dual-Power provides a push-button power shift between direct drive and a lower range.
