Massey Ferguson 8690

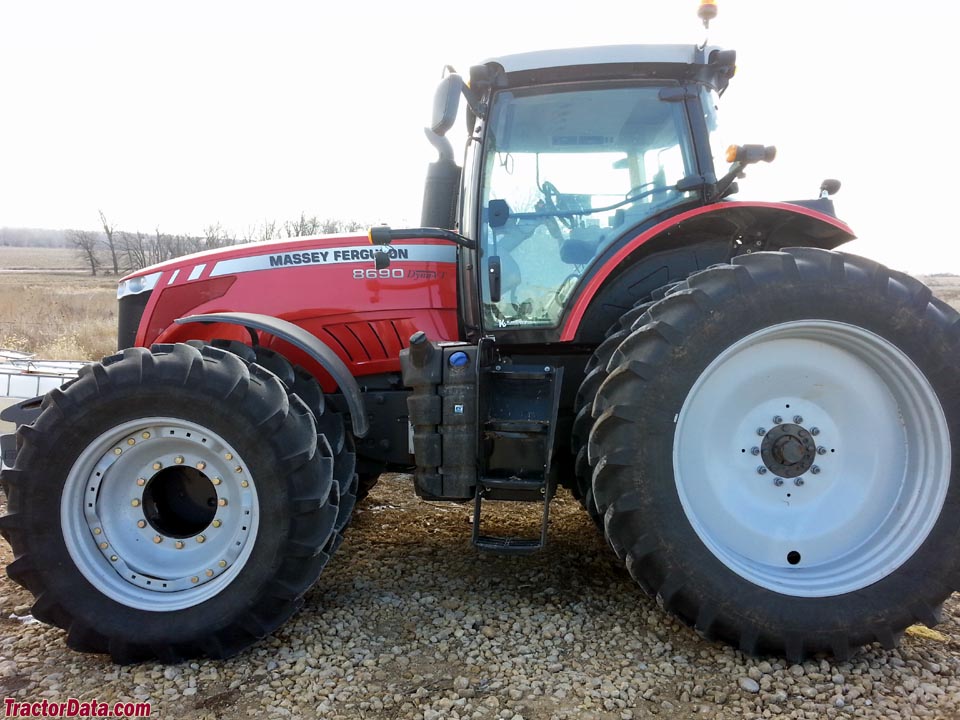

Massey Ferguson 8690 tractor photo
2011 - 2013
8600 Series
Row-Crop tractor
Series:86808690
8737
Production
Manufacturer:Massey Ferguson
Type:Row-Crop tractor
Factories:Beauvais, France
 Jackson, Minnesota, USA
Original price:$315,965 (2013 )
Massey Ferguson 8690 Power
Engine:340 hp
253.5 kW
PTO (claimed):290 hp
216.3 kW
Drawbar (tested):245.7 hp
183.2 kW
PTO (tested):333.2 hp
248.5 kW
power test details ...
Massey Ferguson 8690 Engine
AGCO POWER 8.4L 6-cyl diesel
Fuel tank:167 gal
632.1 L
Exhaust fluid (DEF):16 gal
60.6 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:inboard planetary
Differential lock:electro-hydraulic
Steering:hydrostatic power
Brakes:hydraulic wet disc
Trailer brakes:hydraulic (optional)
 penumatic (optional)
Cab:Cab standard with heat and air-conditioning. Optional heated seat, power adjustable mirrors, and automatic temperature control.
Transmission:continuously-variable transmission (CVT)
Transmission details ...
Hydraulics
Type:closed center load sensing (CCLS)
Pressure:2901 psi
200.0 bar
Valves:4 to 6
Pump flow:46 gpm
174.1 lpm
SCV flow:26.4 gpm
99.9 lpm
Tractor hitch
Rear Type:III
Rear lift (at 24"/610mm):21336 lbs
9678 kg
Front lift:11000 lbs
4989 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000E/1000
 540E/1000
Front PTO:optional
Front RPM:1000
Dimensions & Tires
Wheelbase:122.2 inches
310 cm
Weight:22250 lbs
10092 kg
Front tire:420/85R34
Rear tire:480/80R50
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:240 (dual 120A)
Batteries:2
Battery CCA:775
Battery volts:12
