Tractors > Massey Ferguson > 8690

Massey Ferguson 8690 Tests



Massey Ferguson 8690 tractor photo
2011 - 2013
8600 Series
Row-Crop tractor
Series map:
8680
8690
320.0hp
340.0hp
OCED Tractor Test 2722

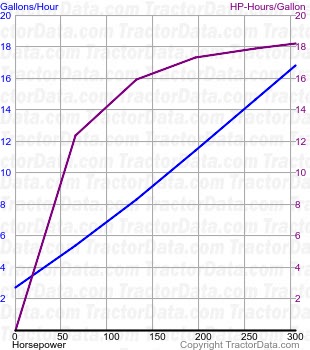

8690 fuel use from test 871
OCED Tractor Test 2722
Diesel Dyna-VT 4WD
January 2012 - July 2012,
Link: OCED Tractor Test 2722 file
PTO performance
Max power333.2 hp
248.5 kW
Fuel use17.6 gal/hour
66.6 l/hour
Power at rated engine speed305.4 hp
227.7 kW
Fuel use16.8 gal/hour
63.6 l/hour
Power at rated PTO speed331.0 hp
246.8 kW
Fuel use17.6 gal/hour
66.6 l/hour
Drawbar performance
Max power245.7 hp
183.2 kW
Fuel use16.5 gal/hour
62.5 l/hour
Pull at 8.92 KPH
Max pull25170 lbs
11417 kg
Pull at 5.26 KPH
