Tractors > John Deere > 6140D

John Deere 6140D - transmission

John Deere 6140D tractor photo
2008 - 2017   6D Series
Model years
Utility tractor
Series back:John Deere 6130D
more John Deere 6140D specifications...






Transmission:

Transmission:John Deere PowrReverser
Type:partially synchronized with power shuttle
Gears:9 forward and reverse
Clutch:hydraulic wet disc
Oil capacity:61.2 qts [57.9 L]
Three gears (1-3) in each of three ranges (A-C) plus left-hand reverser. Forward/reverse powershift. Synchronized shift between gears with clutch. Shifts between ranges are unsynchronized: the tractor must be stopped and clutch used to shift range.

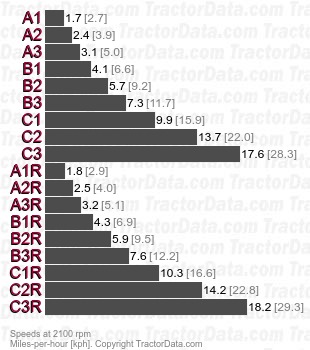

Speeds:With 18.4-34 rear tires.
6140D PowrReverser partially synchronized with power shuttle speeds
