John Deere 6130D Transmission


John Deere 6130D tractor photo
2008 - 2016
Model year
6D Series
Utility tractor
Series:6115D6130D6140D
Transmissions overview
9-speed partially synchronized with power shuttle
9-speed partially synchronzied
Transmission
Transmission:John Deere PowrReverser
Type:partially synchronized with power shuttle
Gears:9 forward and reverse
Clutch:hydraulic wet disc
Oil capacity:61.2 qts
57.9 L
Three gears (1-3) in each of three ranges (A-C) plus left-hand reverser. Forward/reverse powershift. Synchronized shift between gears with clutch. Shifts between ranges are unsynchronized: the tractor must be stopped and clutch used to shift range.
Speeds
With 18.4-34 rear tires.

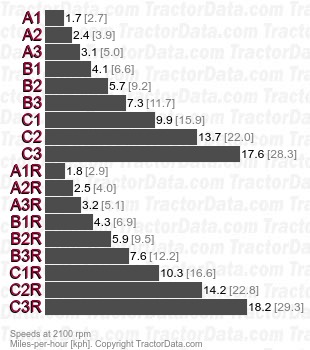

6130D PowrReverser partially synchronized with power shuttle speeds
Transmission
Transmission:John Deere Top Shaft Syncronized (TSS)
Type:partially synchronzied
Gears:9 forward and 3 reverse
Clutch:dry disc
Oil capacity:61.2 qts
57.9 L
Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Shifts between gears, including to reverse, are synchronized using the clutch. Shifts between ranges are not synchronized, the operator must stop the tractor and use the clutch.
Speeds
With 18.4-34 rear tires.

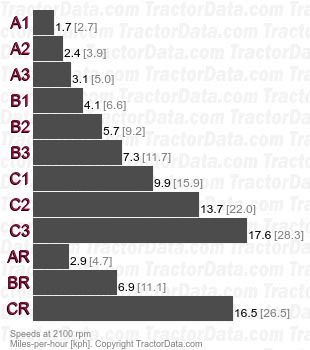

6130D Top Shaft Syncronized (TSS) partially synchronzied speeds
