Tractors > John Deere > 5065E
      -Brand search:


    John Deere 5065E

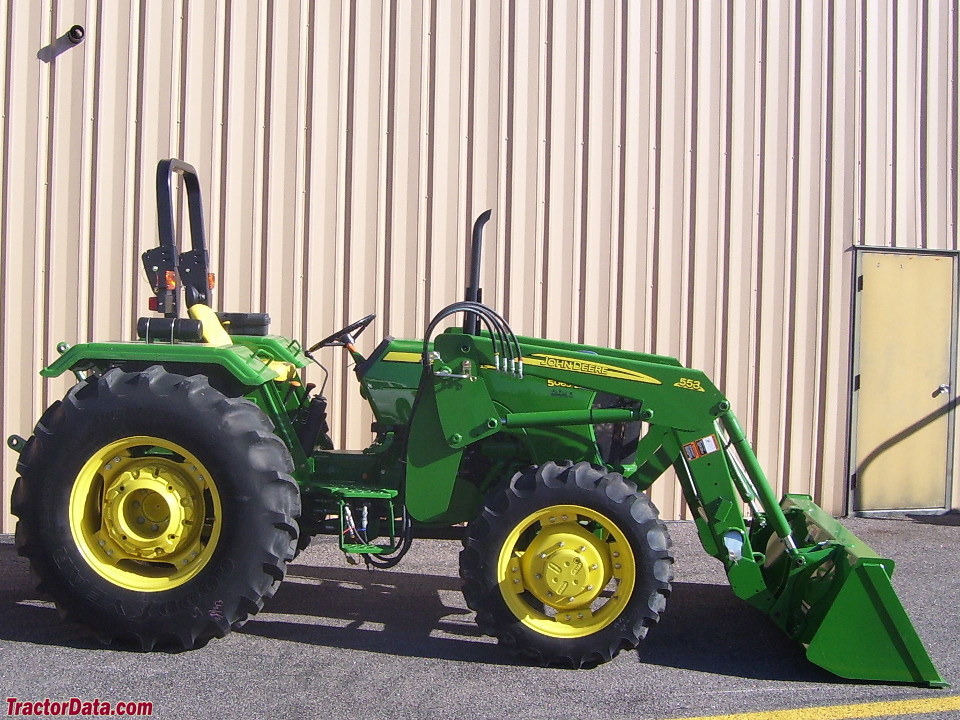

    John Deere 5065E tractor photo
    2008 - 2015   5E Series
    Model years
    Utility tractor
    Larger:John Deere 5075E
    Smaller:John Deere 5055E






    Production:

    Manufacturer:John Deere
    Factory:Pune, Maharashtra, India


    John Deere 5065E Engine:

       John Deere 2.9L 3-cyl diesel
    full engine details ...


    Capacity:

    Fuel:18 gal [68.1 L]
    2WD Hydraulic system:10 gal [37.9 L]
    4WD Hydraulic system:10.3 gal [39.0 L]
    Front axle:4.8 qts [4.5 L]
    Front hubs:0.85 qts [0.8 L] (each)


    3-Point Hitch:

    Rear Type:2
    Control:position and top-link draft control
    Rear lift (at 24"/610mm):3,192 lbs [1447 kg]


    Power Take-off (PTO):

    Rear PTO:independent
    Clutch:mechanical
    Rear RPM:540


    Dimensions & Tires:

    Wheelbase:80.7 inches [204 cm]
    Weight:4634 to 5500 pounds
    Front tire:7.5-16
    Rear tire:16.9-27 (2WD)
    full dimensions and tires ...


    John Deere 5065E attachments:

     front-end loader
    all 5065E attachments ...


    5065E Serial Numbers:


    - Serial numbers unknown -



    John Deere 5065E Power:

    Engine (gross):65 hp [48.5 kW]
    PTO (claimed):53 hp [39.5 kW]
    PTO (tested):57.96 hp [43.2 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Final drives:planetary
    Differential lock:rear diff lock standard
    Steering:hydrostatic power
    Brakes:hydraulic wet disc
    Cab:Folding 2-post ROPS. Optional canopy. Optional deluxe canopy with lights and insulation.


    Hydraulics:

    Type:open center
    2WD Capacity:10 gal [37.9 L]
    4WD Capacity:10.3 gal [39.0 L]
    Pressure:2828 psi [195.0 bar]
    Rear valves:1 or 2
    Mid valves:2 (optional)
    Pump flow:11.4 gpm [43.1 lpm]
    Total flow:18.2 gpm [68.9 lpm]
    Steering flow:6.8 gpm [25.7 lpm]
    Steering press.:1958 psi [135.0 bar]


    Electrical:

    Ground:negative
    Charging system:alternator
    Charging amps:40


    Battery:

    Number:1
    Cold-cranking amps:623
    Volts:12
