Tractors > John Deere > 5065E

John Deere 5065E - transmission

John Deere 5065E tractor photo
2008 - 2017   5E Series
Model years
Utility tractor
Series next:John Deere 5075E
Series back:John Deere 5055E
more John Deere 5065E specifications...






Transmission:

Transmission:SyncReverser
Gears:9 forward and 3 reverse
Clutch:dry disc
Oil capacity:40.15 qts [38.0 L]
Oil type:
JD Hy-Gard

Three gears plus reverse in each of three ranges. Shuttle shift between 2 and R in all ranges. Other shifts are not synchronized. The SyncReverser is standard equipment on two-wheel drive models.
Speeds:With 16.9-28 rear tires.
5065E SyncReverser  speeds


Transmission:

Transmission:SyncShuttle
Type:partially synchronized
Gears:9 forward and 3 reverse
Clutch:dry disc
Oil capacity:41.2 qts [39.0 L]
Oil type:
JD Hy-Gard

Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Shuttle shift between 2 and R in all ranges. Forward gear shifts in-range are synchronized. Shifts between ranges are not synchronized. The SyncShuttle is standard equipment on four-wheel drive models.
Speeds:With 16.9-28 rear tires.

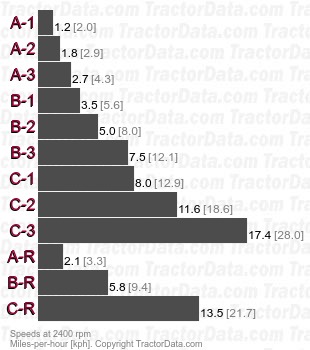

5065E SyncShuttle partially synchronized speeds
