John Deere 5075E Transmission
|
|
| Transmission options | |
| 9-speed | |
| 9-speed partially synchronized |
| Transmission | |||
| Transmission | SyncReverser | ||
| Gears | 9 forward and 3 reverse | ||
| Clutch | dry disc | ||
| Oil capacity | 40.15 qts 38.0 L | ||
| Oil type |
| ||
| Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Shuttle shift between 2 and R in all ranges. Other shifts are not synchronized. The SyncReverser is standard equipment on two-wheel drive models. | |||

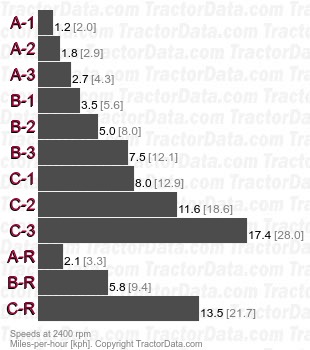

| Speeds | |
| With 16.9-28 rear tires. | |
|
| Transmission | |||
| Transmission | SyncShuttle | ||
| Type | partially synchronized | ||
| Gears | 9 forward and 3 reverse | ||
| Clutch | dry disc | ||
| Oil capacity | 41.2 qts 39.0 L | ||
| Oil type |
| ||
| Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Shuttle shift between 2 and R in all ranges. Forward gear shifts in-range are synchronized. Shifts between ranges are not synchronized. The SyncShuttle is standard equipment on four-wheel drive models. | |||
| Speeds | |
| With 16.9-28 rear tires. | |
|
