TractorData.com - information on all makes and models of tractors
Tractors > CaseIH > Farmall 40

CaseIH Farmall 40

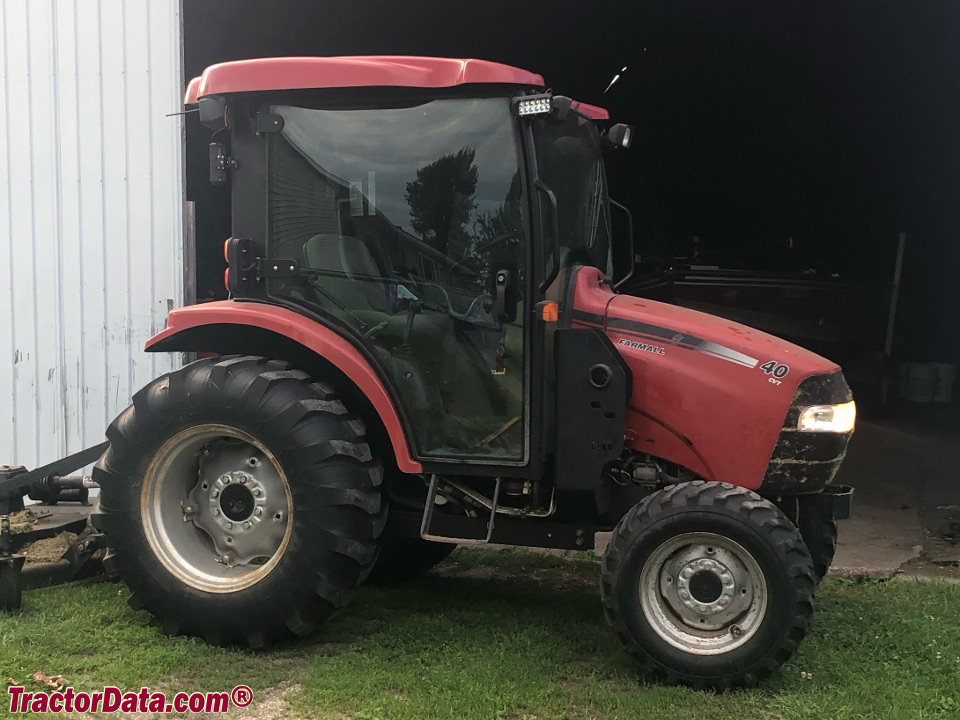

CaseIH Farmall 40 tractor photo
2008 - 2011   Farmall Compact Series
Compact Utility tractor
Previous model:CaseIH DX40
Next model:CaseIH Farmall 40B
Series next:CaseIH Farmall 45
Series back:CaseIH Farmall 35






Production:

Distributor:CaseIH
Manufacturer:Shibaura
Factory:Dublin, Georgia, USA
Original price (USD)
   $25,677 (2011 shuttle ROPS )
   $28,192 (2011 hydro ROPS )
   $36,653 (2011 CVT cab )


CaseIH Farmall 40 Engine:

   Shibaura 2.0L 4-cyl diesel
full engine details ...


Capacity:

Fuel:13 gal [49.2 L]


3-Point Hitch:

Rear Type:I
Control:position control
Rear lift (at 24"/610mm):2,330 lbs [1056 kg]
 2,800 lbs [1270 kg] (CVT)


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540
Mid PTO:optional with hydro/CVT
Mid RPM:2000


Dimensions & Tires:

Wheelbase:73.5 inches [186 cm]
Weight:3252 to 4402 pounds
Front tire:8-16
Rear tire:14.9x24
full dimensions and tires ...


CaseIH Farmall 40 attachments:

 front-end loader
all Farmall 40 attachments ...


Farmall 40 Serial Numbers:


- Serial numbers unknown -



CaseIH Farmall 40 Power:

Engine (gross):40 hp [29.8 kW]
PTO (claimed):35.0 hp [26.1 kW] (gear)
 33.2 hp [24.8 kW] (hydro)
 32 hp [23.9 kW] (CVT)


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Foldable two-post ROPS. Cab optional with air-conditioning.


Hydraulics:

Type:open center
Pump flow:9.8 gpm [37.1 lpm]
Total flow:14.9 gpm [56.4 lpm]
Steering flow:5.1 gpm [19.3 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:40 (ROPS)
 55 (cab)
 75 (cab optional)


Battery:

Number:1
Cold-cranking amps:600
Volts:12
