Tractors > J.I. Case > 2294

J.I. Case 2294 - tests

J.I. Case 2294 tractor photo
1984 - 1984   94 Series
Row-Crop tractor
Previous model:J.I. Case 2290
Next model:CaseIH 2294
Series next:J.I. Case 2394
Series back:J.I. Case 2094
more J.I. Case 2294 specifications...






Nebraska Tractor Test 1526:

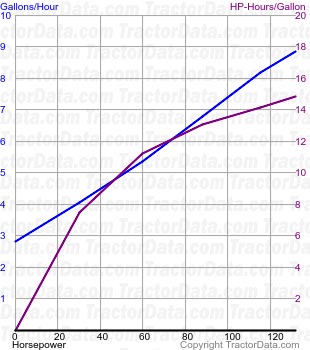

2294 fuel use from test 1526
Test Date:June 1 - 12, 1984
Type:Diesel 12 speed 2WD
PTO power (rated engine speed):131.97 hp [98.4 kW]
PTO fuel use (engine speed):8.9 gal/hour [33.7 l/hour]
Drawbar power (max):115.35 hp [86.0 kW]
Drawbar fuel use (max):8.8 gal/hour [33.3 l/hour]
Drawbar pull (max):13,017 lbs [5904 kg]
Max pull gear:2-1
Test report:PDF file
