Tractors > CaseIH > Maxxum 125

CaseIH Maxxum 125 Tests



CaseIH Maxxum 125 tractor photo
2007 - 2022
Model year
Maxxum Series
Row-Crop tractor
Series:Maxxum 120 ← Maxxum 125 → Maxxum 130
OCED Tractor Test 2442

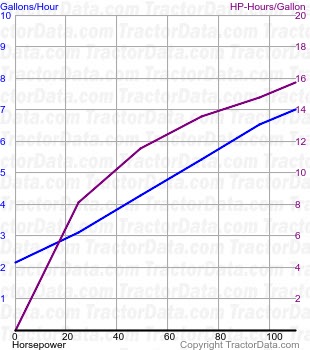

Maxxum 125 fuel use from test 665
OCED Tractor Test 2442
Diesel 16-speed 4WD
October 2007 - January 2008,
Link: OCED Tractor Test 2442 file
PTO performance
Power at rated engine speed:114.8 hp
85.6 kW
Fuel use:7.0 gal/hour
26.5 l/hour
Power at rated PTO speed:113.3 hp
84.5 kW
Fuel use:6.8 gal/hour
25.7 l/hour
Drawbar performance
Max power:90.4 hp
67.4 kW
Fuel use:7.0 gal/hour
26.5 l/hour
Gear 7 used for power test.
Max pull:10,390 lbs
4712 kg
Gear 5 used for pull test.
OCED Tractor Test 2449

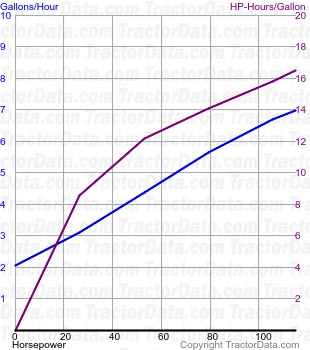

Maxxum 125 fuel use from test 679
OCED Tractor Test 2449
PRO diesel 16-speed 4WD
April 2008 - May 2008,
Link: OCED Tractor Test 2449 file
PTO performance
Max power:122.6 hp
91.4 kW
Fuel use:7.1 gal/hour
26.9 l/hour
Power at rated engine speed:110.0 hp
82.0 kW
Fuel use:7.0 gal/hour
26.5 l/hour
Power at rated PTO speed:116.1 hp
86.6 kW
Fuel use:7.2 gal/hour
27.3 l/hour
Drawbar performance
Max power:90.9 hp
67.8 kW
Fuel use:7.0 gal/hour
26.5 l/hour
Gear 7 used for power test.
Max pull:11,845 lbs
5372 kg
Gear 2 used for pull test.
