CaseIH Steiger 435


CaseIH Steiger 435 tractor photo
2008 - 2010
Four-wheel Drive (4WD) tractor
Production
ManufacturerCaseIH
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Original price$268,480 (2010)
Variants
435 Quadtracarticulted crawler
CaseIH Steiger 435 Engine
Iveco 12.9L 6-cyl diesel
Fuel tank300 gal
1135.5 L
Engine details ...
CaseIH Steiger 435 Power
Engine435 hp
324.4 kW
PTO (claimed)379 hp
282.6 kW
Drawbar (tested)351.28 hp
261.9 kW
PTO (tested)438.97 hp
327.3 kW
Performance test details ...
Mechanical
Four-wheel drive
Steeringhydrostatic power
Integrated hydraulic wet disc brakes
Cab standard with heat and A/C, optional Luxury cab
Hydraulics
Typeparallel pressure flow compensated (PFC)
Valves4 to 5
 4 to 9 (without 3-point hitch)
Total flow40 gpm
151.4 lpm
 55 gpm (High-Flow)
208.2 lpm
 90 gpm (Twin-Flow)
340.7 lpm
Tractor hitch
Rear Type4N
Rear lift (at 24"/610mm)19,620 lbs
8899 kg
Power Take-off (PTO)
Rear PTOindependent optional
Rear RPM1000
Dimensions & Tires
Wheelbase154 inches
391 cm
Weight37900 to 41605 pounds
Front tire710/70R42
Rear tire710/70R42
Full dimensions and tires ...
Steiger 435 Serial Numbers
Steiger 435 Serial Location

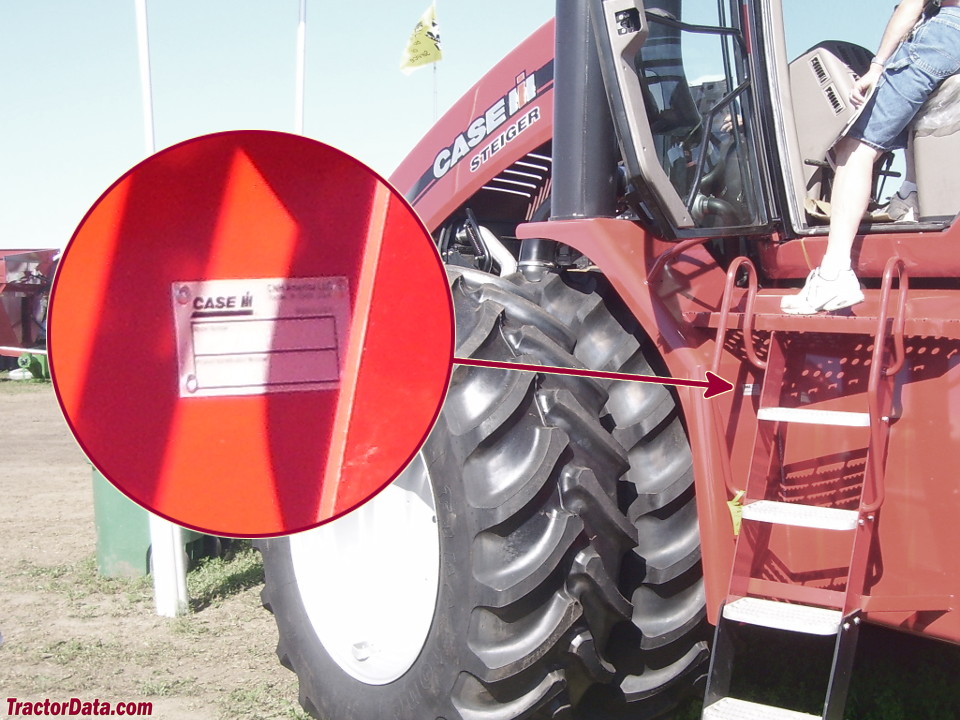

CaseIH Steiger 435 serial number location
Serial number on the left side of the tractor, behind the step.
Electrical
Groundnegative
Charging systemalternator
Charging amps175
Batteries2
Battery CCA1000
Battery volts12
References
Steiger 435 references literature
Steiger Series Tractors published in 2007, by CaseIH
