Tractors > Challenger > MT255B

Challenger MT255B - transmission

Challenger MT255B tractor photo
2005 - 2008   MT200B Series
Compact Utility tractor
Previous model:Challenger MT255
Series next:Challenger MT265B
Series back:Challenger MT225B
more Challenger MT255B specifications...






Transmission:

Type:hydrostatic
Gears:infinite (3-range) forward and reverse
Oil capacity:30.6 qts [29.0 L]
Speeds:With 12.5/80-18 rear tires.
MT255B  hydrostatic speeds


Transmission:

Type:gear
Gears:9 forward and 3 reverse
Clutch:dry dual stage
Oil capacity:19 qts [18.0 L]
Three non-synchronized gears (1-3), plus reverse (R) in three non-synchronized ranges.
Speeds:With 12.5/80-18 rear tires.

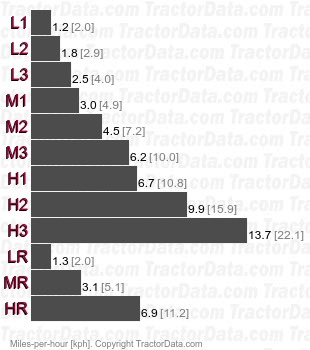

MT255B  gear speeds
