Tractors > AGCO > RT165A

AGCO RT165A

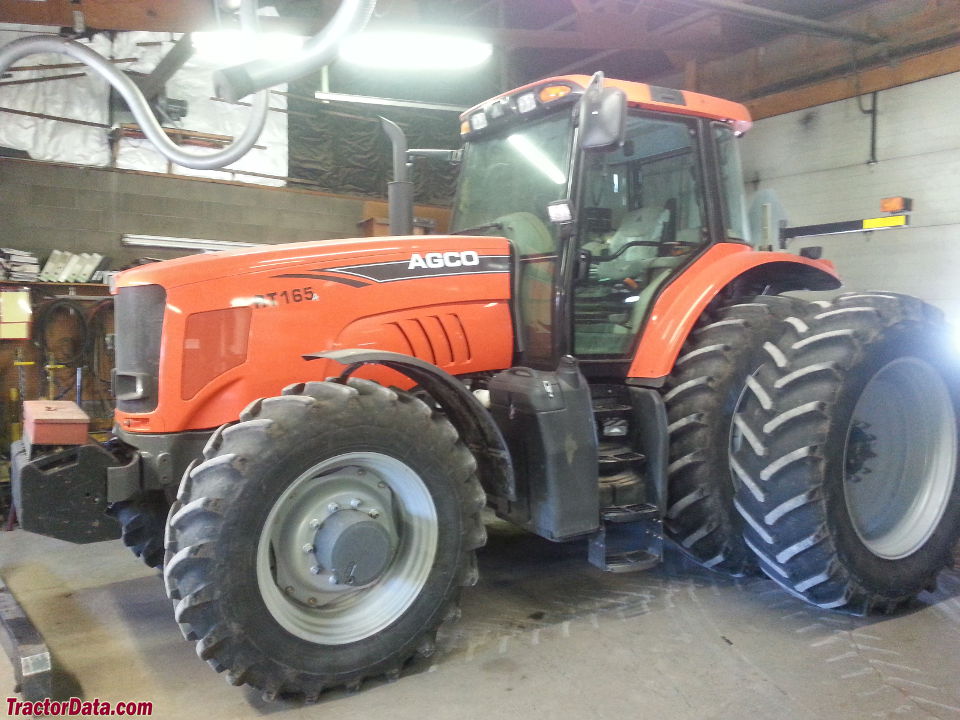

AGCO RT165A tractor photo
2007 - 2011   RT-A Series
Row-Crop tractor
Series next:AGCO RT180A
Series back:AGCO RT155A





The AGCO RT165A is the same as the Massey Ferguson 6497.


Production:

Manufacturer:AGCO
Factory:Beauvais, France


AGCO RT165A Engine:

   SisuDiesel 7.4L 6-cyl diesel
full engine details ...


Capacity:

Fuel:100 gal [378.5 L]


3-Point Hitch:

Rear Type:3/3N
Control:electronic position and lower-link draft control
Rear lift (at 24"/610mm):15,700 lbs [7121 kg]
Front Hitch:2/3 (optional)
Front lift:8,800 lbs [3991 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/540E/1000
Front PTO:optional
Front RPM:1000


Dimensions & Tires:

2WD Wheelbase:115.95 inches [294 cm]
4WD Wheelbase:118.6 inches [301 cm]
Weight:17,200 lbs [7801 kg]
Front tire:420/90R30
Rear tire:480/80R46 (4WD)
full dimensions and tires ...


RT165A Serial Numbers:


- Serial numbers unknown -



AGCO RT165A Power:

Engine:200 hp [149.1 kW]
PTO (claimed):165 hp [123.0 kW]
Drawbar (tested):149.8 hp [111.7 kW]
PTO (tested):182.4 hp [136.0 kW]
power test details ...


Mechanical:

Chassis:4x4 MFWD 4WD
Differential lock:electro-hydraulc front and rear
Steering:hydrostatic power
Brakes:hydraulic wet disc
Trailer brakes:hydraulic optional
Cab:Cab standard. Optional Airmaxx pneumatic cab suspension and automatic climate control.


Hydraulics:

Type:closed center pressure flow compensated (PFC)
Pressure:2900 psi [200.0 bar]
Valves:3 to 5
Total flow:29 gpm [109.8 lpm]
 39 gpm [147.6 lpm] (optional)


Electrical:

Ground:negative
Charging system:alternator
Charging amps:175


Battery:

Number:2
Cold-cranking amps:550
Volts:12
