Tractors > New Holland > T6020 Elite

New Holland T6020 Elite

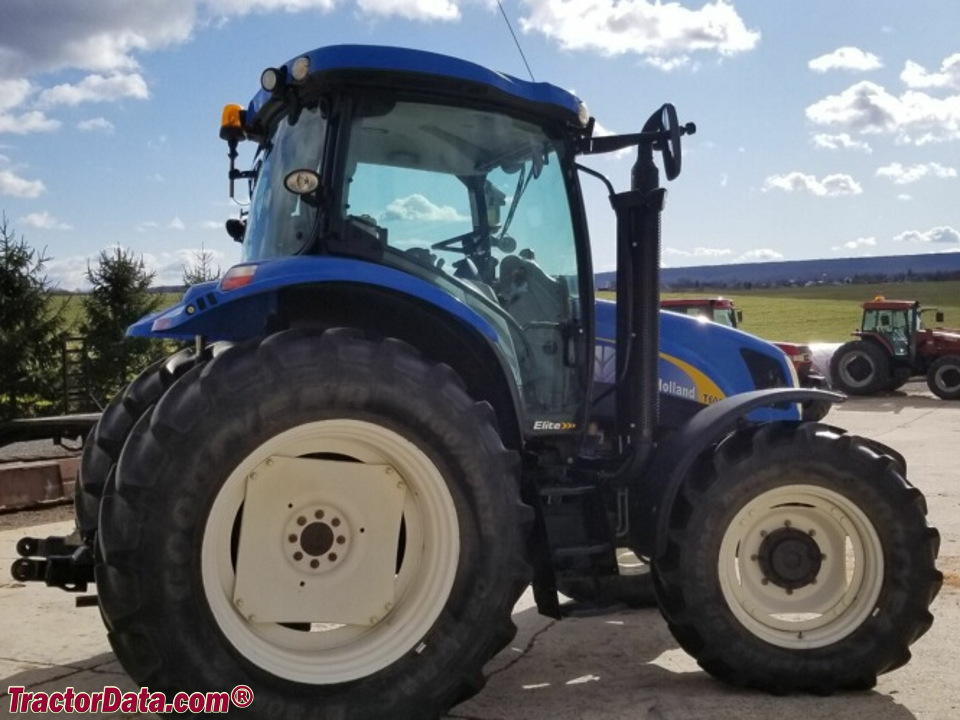

New Holland T6020 Elite tractor photo
2007 - 2012   T6000 Series
Row-Crop tractor
Series next:New Holland T6030 Elite






Production:

Manufacturer:New Holland
Factory:Basildon, England


Variants:

T6020 Delta:economy
T6020 Plus:mid-level
T6020 Elite:premium


New Holland T6020 Elite Engine:

   FPT 4.5L 4-cyl diesel
full engine details ...


Capacity:

Fuel:46.5 gal [176.0 L]
 40.2 gal [152.2 L] (SuperSteer axle)
Hydraulic system:16.3 gal [61.7 L]


3-Point Hitch:

Rear Type:2/3N
Control:electronic lower-link draft control
Rear lift:12,185 lbs [5527 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/1000 (1.375)


Dimensions & Tires:

Wheelbase:95 inches [241 cm]
 95.3 inches [242 cm] (Terraglide axle)
 99.2 inches [251 cm] (SuperSteer axle)
Weight:10,888 lbs [4938 kg]
full dimensions and tires ...


T6020 Elite Serial Numbers:


- Serial numbers unknown -



New Holland T6020 Elite Power:

Engine (gross):110 hp [82.0 kW]
PTO (claimed):90 hp [67.1 kW]
Drawbar (tested):78.7 hp [58.7 kW]
PTO (tested):108.5 hp [80.9 kW]
power test details ...


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:hydraulic wet disc
Cab:Horizon cab standard with air-conditioning. Optional deluxe cab with automatic temperature control and air-ride seat. Optional Comfort Ride cab suspension. Programmable headland management system.


Hydraulics:

Type:closed center load sensing
Capacity:16.3 gal [61.7 L]
Valves:2 to 4
Pump flow:26.5 gpm [100.3 lpm]
Total flow:37 gpm [140.0 lpm]
Steering flow:10.5 gpm [39.7 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:120
Charging volts:12


Battery:

Cold-cranking amps:960
Volts:12
