    John Deere 20A - transmission

    John Deere 20A tractor photo
    2008 -
    more John Deere 20A specifications...






    Transmission:

    Transmission:gear
    Gears:6 forward and 3 reverse
    Oil capacity:6.34 qts [6.0 L]
    Two levers control the transmission. The left-side range lever selects low, high, or reverse. The right-side gear lever selects one of three gears. Tractor must be stopped and clutch used to shift either range or gears.

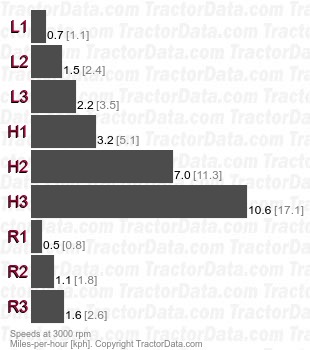

    Speeds:With 6.5/80x15 tires.
    20A gear speeds
