| 2006 - 2011 |
RT-A Series | Row-Crop tractor |
|
Transmissions overview |
24-speed partial power shift |
continuously variable transmission |
Transmission |
Transmission | Auto-6
|
Type | partial power shift
|
Gears | 24 forward and reverse
|
Clutch | wet disc
|
Six power shift gears in four synchromesh ranges. Autodrive provides automatic shifting to match load. |
Transmission |
Transmission | PowerMaxx CVT
|
Type | continuously variable transmission
|
Gears | infinite forward and reverse (two-range)
|
Combination hydrostatic-mechanical CVT transmission. With the suspended front axle a transport speed of 50 KPH is available. Creeper speed available down to 0.03 KPH. |

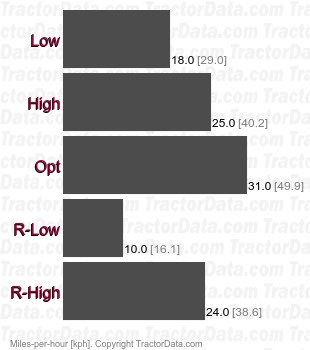

Speeds |
|
