Tractors > AGCO > RT120A

AGCO RT120A - tests

AGCO RT120A tractor photo
2006 - 2011   RT-A Series
Row-Crop tractor
Previous model:AGCO RT120
Series next:AGCO RT140A
Series back:AGCO RT110A
more AGCO RT120A specifications...






OCED Tractor Test 1904:

Nebraska summary:570

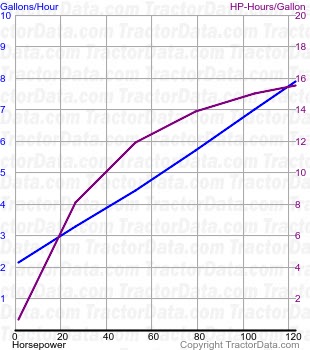

RT120A fuel use from test 570
Test Date:May 23 - 29, 2007
Type:Diesel CVT 4WD
PTO power (max):130.20 hp [97.1 kW]
PTO fuel use (max):7.2 gal/hour [27.3 l/hour]
PTO power (rated engine speed):122.71 hp [91.5 kW]
PTO fuel use (engine speed):7.9 gal/hour [29.9 l/hour]
PTO power (rated PTO speed):127.62 hp [95.2 kW]
PTO fuel use (PTO speed):7.5 gal/hour [28.4 l/hour]
Drawbar power (max):101.24 hp [75.5 kW]
Drawbar fuel use (max):7.8 gal/hour [29.5 l/hour]
Drawbar pull (max):15,050 lbs [6826 kg]
Max pull gear:3.65 KPH
Test report:PDF file


OCED Tractor Test 2412:

Nebraska summary:694

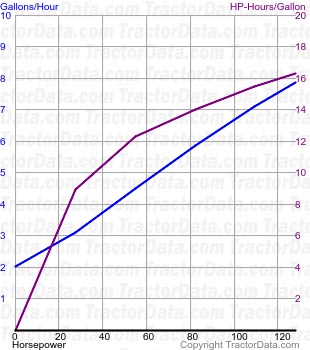

RT120A fuel use from test 694
Test Date:November 2007 - January 2008,
Type:Diesel 24-speed 4WD
PTO power (max):147.2 hp [109.8 kW]
PTO fuel use (max):8.1 gal/hour [30.7 l/hour]
PTO power (rated engine speed):127.8 hp [95.3 kW]
PTO fuel use (engine speed):7.9 gal/hour [29.9 l/hour]
PTO power (rated PTO speed):143.9 hp [107.3 kW]
PTO fuel use (PTO speed):8.2 gal/hour [31.0 l/hour]
Drawbar power (max):97.1 hp [72.4 kW]
Drawbar fuel use (max):6.8 gal/hour [25.7 l/hour]
Drawbar pull (max):13,265 lbs [6017 kg]
Max pull gear:1D
Test report:PDF file
