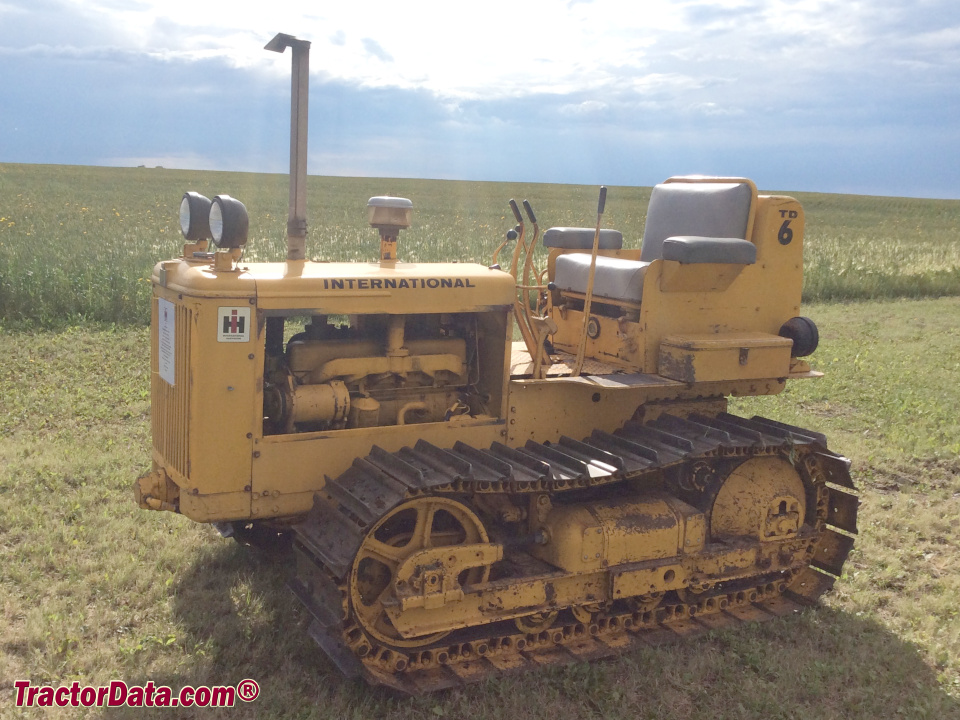

International Harvester TD-6 Series 62
|
|
| Production | |
| Manufacturer | International Harvester |
| Agricultural Crawler tractor | |
| Built in Melrose Park, Illinois, USA | |
| Variants | |
| T-6 Series 62 | gasoline engine |
| International Harvester TD-6 Series 62 Engine | |
| International Harvester 4.6L 6-cyl diesel | |
| Fuel tank | 33 gal 124.9 L |
 Engine details ... | |
| International Harvester TD-6 Series 62 Transmissions | |
| 5-speed gear | |
| 4-speed gear | |
 Transmission details ... |
| International Harvester TD-6 Series 62 Power | |
| Engine (net) | 58 hp 43.3 kW |
| Drawbar (claimed) | 45 hp 33.6 kW |
| Mechanical | |
| Drive | crawler |
| Final drives | bull gear |
| Open operator station. | |
| Hydraulics | |
| Type | open center |
| Pump flow | 26 gpm (loader) 98.4 lpm |
| Power Take-off (PTO) | |
| Rear PTO | transmission OptOptional |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@1450 |
| Dimensions & Tracks | |
| Weight | 8160 lbs 3701 kg |
| 12-inch tracks | |
 Full dimensions and tracks ... | |
| International Harvester TD-6 Series 62 attachments | |
| blade | |
| front-end loader | |
 Attachment details ... |
| TD-6 Series 62 Serial Numbers | |
| Location: | Serial number plate on the dashboard. |
| 1959 | 501 |
| 1960 | 1063 |
| 1961 | 1629 |
| 1962 | 2056 |
| 1963 | 2404 |
| 1964 | 2753 |
| 1965 | 3177 |
| 1966 | 3631 |
| 1967 | 3991 |
| 1968 | 4221 |
| 1969 | 4424 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | positive |
| Charging system | generator |
| Charging amps | 17 |
| Batteries | 2 |
| Battery volts | 6 |
| References | |
 | |
| Operator's Manual TD-6 (62 Series) Crawler Tractor (1967) published in 1 085 284 R1 | |
| Spring 1968 Buyer's Guide published by International Harvester | |
| Summer-Fall 1968 Buyer's Guide published by International Harvester | |
| Spring 1969 Buyer's Guide published by International Harvester | |
| TD-6 Diesel Crawler published in 1959, by International Harvester | |
| TD-6 (62 Series) Diesel Crawler Tractor published in 1959, by International Harvester | |
| Farm Equipment Reference Catalog published in 1965, by International Harvester |
