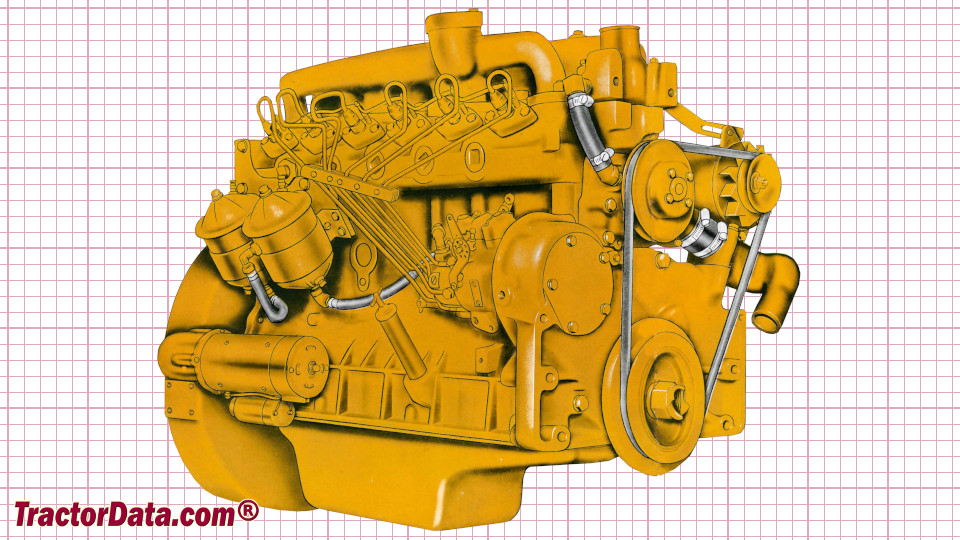

International Harvester TD-6 Series 62 Engine
|
|
| Engine Detail | |
| International Harvester D-282 | |
| diesel | |
| 6-cylinder | |
| liquid-cooled inline | |
| The TD-6 engine was rated at 1550 RPM as an industrial crawler or dozer, 1650 RPM as a loader tractor (TD-62L) and 1800 RPM in the agricultural version (TD-62A). | |
| Displacement | 282 ci 4.6 L |
| Bore/Stroke | 3.6875x4.39 inches 94 x 112 mm |
| Power (net) | 58 hp 43.3 kW |
| Air cleaner | oil bath |
| Pre-heating | glow plugs |
| Compression | 18:1 |
| Rated RPM | 1800 |
| Starter | electric |
| Starter volts | 12 |
| Coolant capacity | 35 qts 33.1 L |
| Intake valve clearance | 0.030 inches (cold) 0.762 mm |
| Exhaust valve clearance | 0.030 inches (cold) 0.762 mm |

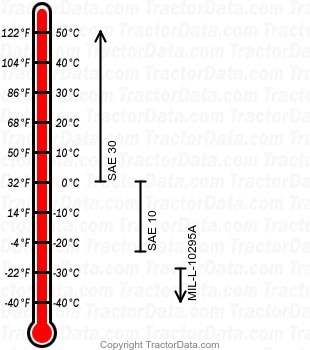

| Engine Oil | |
| |
| Oil capacity | 10 qts 9.5 L |
| Oil change | 100 h |
