Tractors > New Holland > TC29DA

New Holland TC29DA

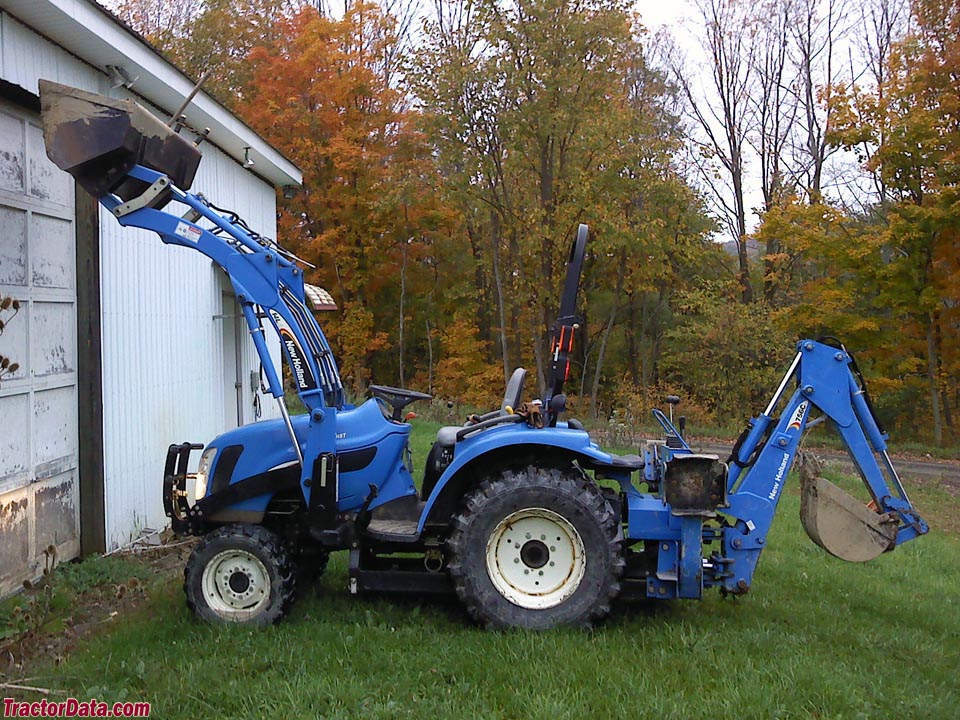

New Holland TC29DA tractor photo
2004 - 2006   Boomer TC-A Series
Compact Utility tractor
Previous model:New Holland TC29
Series next:New Holland TC33DA
Series back:New Holland TC24DA






Production:

Manufacturer:New Holland
Original price (USD):$16,500 (2000)


New Holland TC29DA Engine:

   Shibura 1.3L 3-cyl diesel
full engine details ...


Capacity:

Fuel:7.3 gal [27.6 L]


3-Point Hitch:

Rear Type:I
Rear lift (at ends):1635 lbs [741 kg]


Power Take-off (PTO):

Rear PTO:live
Rear RPM:540
Mid PTO:optional
Mid RPM:2000


Dimensions & Tires:

Wheelbase:63 inches [160 cm]
SuperSteer Wheelbase:72 inches [182 cm]
Weight:2474 lbs [1122 kg]
Front tire:5.50-16
Rear tire:11.2-24
full dimensions and tires ...


New Holland TC29DA attachments:

 front-end loader
all TC29DA attachments ...


TC29DA Serial Numbers:

2004: G100009
2005: G103054
2006: G105497

how to read serial numbers...



New Holland TC29DA Power:

Engine:29 hp [21.6 kW]
PTO (claimed):25 hp [18.6 kW] (gear)
 23.6 hp [17.6 kW] (hydro)


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Cab:Two-post foldble ROPS.


Hydraulics:

Type:open center
Pump flow:7.6 gpm [28.8 lpm]
Steering flow:5.1 gpm [19.3 lpm]


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
