Farmall 560 - transmission

Farmall 560 tractor photo
1958 - 1963
Row-Crop tractor
Previous model:Farmall 450
Series back:Farmall 460
more Farmall 560 specifications...






Transmission:

Type:sliding gear
Gears:5 forward and 1 reverse
Oil capacity:64 qts [60.6 L]

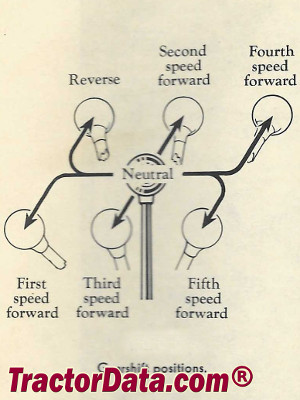

Tractor must be stopped and clutch used to shift gears.
Speeds:With 13.6-38 rear tires.
560  sliding gear speeds


Transmission:

Transmission:Torque Amplifier
Type:partial power shift
Gears:10 forward and 2 reverse
Oil capacity:64 qts [60.6 L]
The Torque Amplifier (TA) allows a clutchless shift-on-the-move underspeed for any gear. With the TA lever forward, the TA is disengaged and the transmission is in direct drive (DD) mode. To engage the TA, the lever should be pulled quickly and smoothly to the rear. The TA on the 560 will free-wheel, so it should be disengaged when going downhill or towing the tractor to start it.
Speeds:With 16.6-38 rear tires.

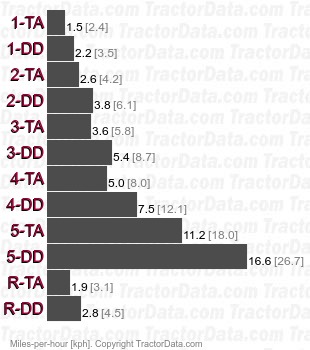

560 Torque Amplifier partial power shift speeds
Farmall 560 Torque Amplifier transmission photo
