Tractors > Fendt > 933 Vario

Fendt 933 Vario

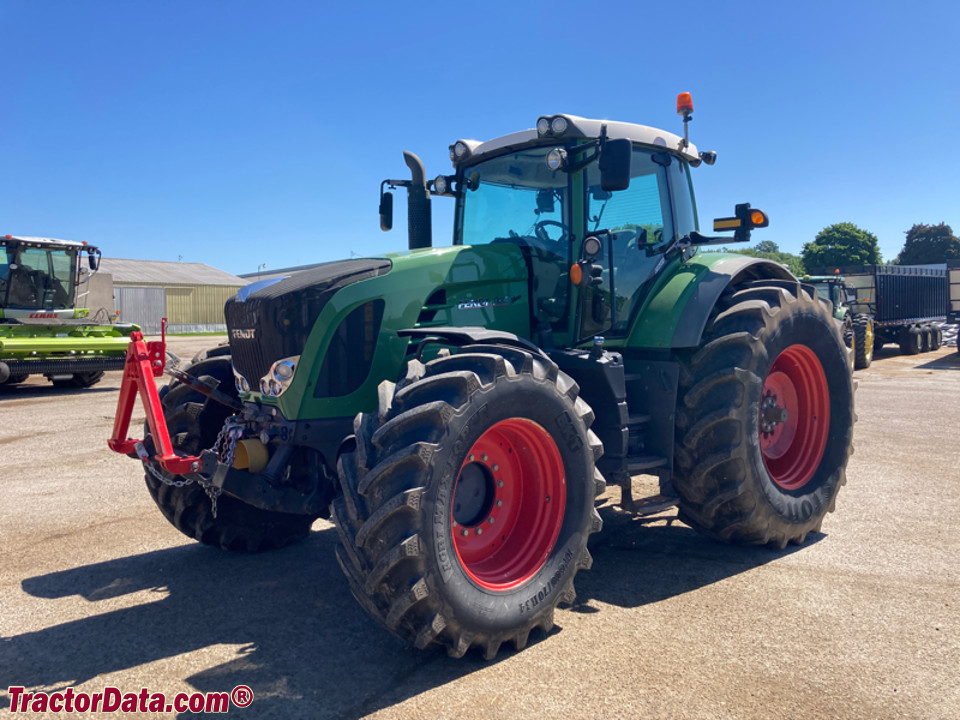

Fendt 933 Vario tractor photo
2006 - 2010   900 Vario Series
Row-Crop tractor
Series next:Fendt 936 Vario
Series back:Fendt 930 Vario






Production:

Manufacturer:Fendt
Factory:Marktoberdoft, Germany


Fendt 933 Vario Engine:

   Deutz 7.1L 6-cyl diesel
full engine details ...


Capacity:

Fuel:174.4 gal [660.1 L]
Hydraulic system:23 gal [87.1 L]


3-Point Hitch:

Rear Type:IV
Rear lift (at ends):19,800 lbs [8981 kg]
Front lift (at ends):9,000 lbs [4082 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540E/1000
 1000
Front PTO:optional
Front RPM:1000


Dimensions & Tires:

Wheelbase:120.1 inches [305 cm]
Weight:22620 lbs [10260 kg]
Front tire:600/65R34
Rear tire:710/70R42
full dimensions and tires ...


933 Vario Serial Numbers:


how to read serial numbers...



Fendt 933 Vario Power:

Engine (gross):324 hp [241.6 kW]
Engine (net):300 hp [223.7 kW]
Engine (max):333 hp [248.3 kW]
PTO (claimed):275 hp [205.1 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Cab standard with heat and air-conditioning.


Hydraulics:

Type:load sensing
Capacity:23 gal [87.1 L]
Pressure:2900 psi [200.0 bar]
Valves:4
Total flow:42.3 gpm [160.1 lpm]
 57.1 gpm [216.1 lpm] (optional)


Electrical:

Charging system:alternator
Charging amps:300*Dual 150A alternators


Battery:

Number:1
Volts:12
