Tractors > Chamberlain > Champion 9G

Chamberlain Champion 9G - transmission

Chamberlain Champion 9G tractor photo
1958 - 1966   Champion Series
Standard-tread tractor
Previous model:Chamberlain Champion 6G
Next model:Chamberlain 306
more Chamberlain Champion 9G specifications...






Transmission:

Type:gear
Gears:9 forward and 3 reverse
Clutch:355.6mm dry disc
Three gears (1-3), plus reverse (R) in three ranges (low, intermediate, high).

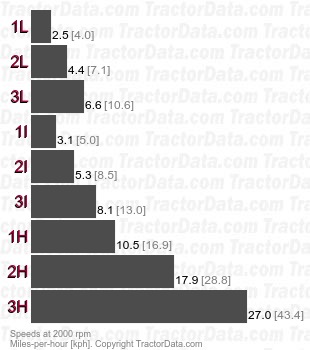

Speeds:
Champion 9G  gear speeds
