Tractors > Massey-Harris > 203

Massey-Harris 203

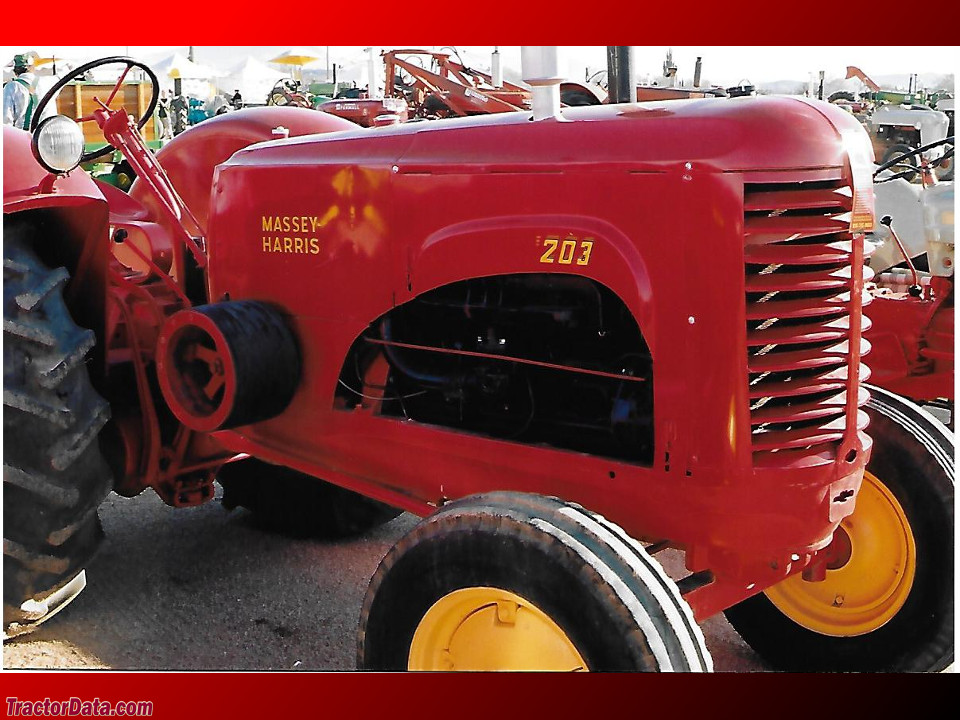

Massey-Harris 203 tractor photo
1940 - 1947   200 Series
Standard-tread tractor






Production:

Manufacturer:Massey-Harris
Factory:Racine, Wisconsin, USA


Variants:

201:Chrysler 4.1L gas
202:Continental 4.8L gas
203:Continental 5.4L distillate
203G:Continental 5.4L gas


Massey-Harris 203 Engines:

   Continental 5.4L 6-cyl distillate
   Continental 5.4L 6-cyl gasoline
full engine details ...


Capacity:



Power Take-off (PTO):

Rear RPM:540


Dimensions & Tires:

Weight:6700 lbs [3039 kg]
full dimensions and tires ...


203 Serial Numbers:

1940: 98001
1941: 98028
1942: 98364
1943: 98674
1944: 98807
1945: -----
1946: 98689
1947: 100120

how to read serial numbers...



Massey-Harris 203 Power:

PTO (claimed):37 hp [27.6 kW]
Plows:5


Mechanical:

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.


Belt Pulley:

Diameter:13.5 inches [34 cm]
Width:8 inches [20 cm]
RPM:839
Speed:2962 ft/min [902.82 meters/min]
