Tractors > Massey-Harris > 201

Massey-Harris 201

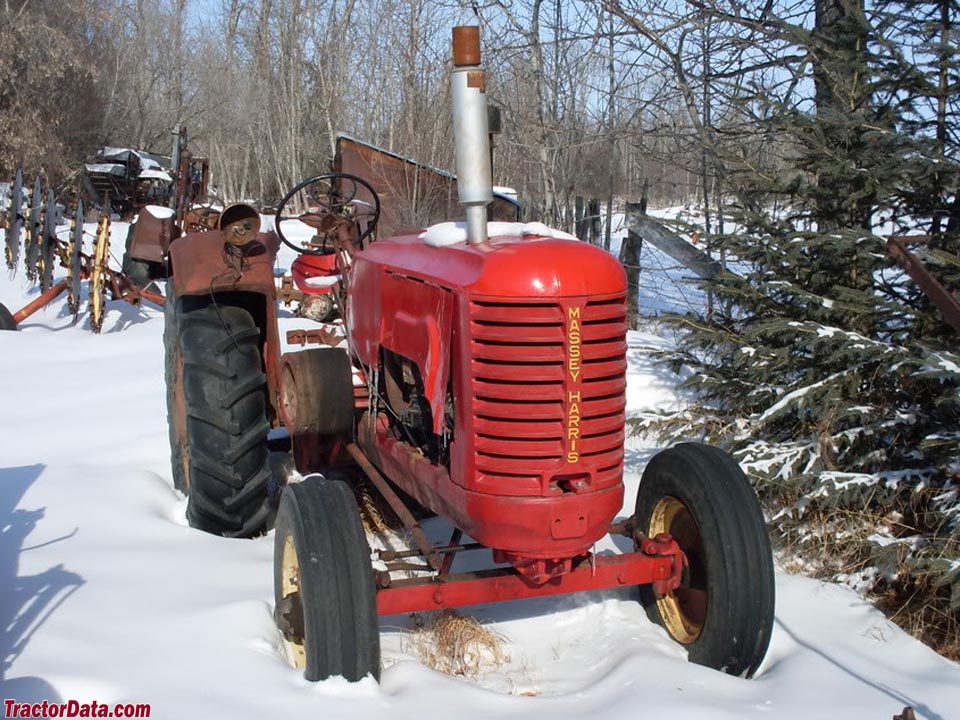

Massey-Harris 201 tractor photo
1940 - 1942   200 Series
Standard-tread tractor






Production:

Manufacturer:Massey-Harris
Factory:Racine, Wisconsin, USA
Original price (USD)
   $1,750 (1942 )


Variants:

201:Chrysler 4.1L gas
202:Continental 4.8L gas
203:Continental 5.4L distillate
203G:Continental 5.4L gas


Massey-Harris 201 Engine:

   Chrysler 4.0L 6-cyl gasoline
full engine details ...


Capacity:



Power Take-off (PTO):

Rear RPM:540


Dimensions & Tires:

Weight:6700 lbs [3039 kg]
Front tire:7.50-18
Rear tire:13-28
full dimensions and tires ...


201 Serial Numbers:

1940: 91201
1941: 91541
1942: 91691

how to read serial numbers...



Massey-Harris 201 Power:

Plows:5


Mechanical:

Chassis:4x2 2WD
Steering:manual
Brakes:drum and shoe
Cab:Open operator station.


Belt Pulley:

Diameter:13.5 inches [34 cm]
Width:8 inches [20 cm]
RPM:839
Speed:2962 ft/min [902.82 meters/min]
