New Holland 9882


New Holland 9882 tractor photo
1996 - 2000
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built
Series map:
9682
9882
360.0hp
425.0hp
Production
DistributorNew Holland
ManufacturerVersatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada
New Holland 9882 Engine
Cummins 14.0L 6-cyl diesel
Engine details ...
New Holland 9882 Power
Engine425 hp
316.9 kW
Drawbar (claimed)338 hp
252.0 kW
Drawbar (tested)346.4 hp
258.3 kW
Performance test details ...
Mechanical
Four-wheel drive
Articulated power steering
Hydraulic dry disc brakes
Cab standard with air-conditioning.
Photos
No photos of the New Holland 9882 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel230 gal*Usable tank capacity. Total capacity is 245 US Gallons.
870.6 L
Hydraulic system31 gal
117.3 L
 33 gal (with 3-point)
124.9 L
Front hubs12.8 qts
12.1 L
Front diff.28.4 qts
26.9 L
Rear hubs12.8 qts
12.1 L
Rear diff.28.4 qts
26.9 L
Hydraulics
Typeclosed center load sensing
Capacity31 gal
117.3 L
 33 gal (with 3-point)
124.9 L
Pressure2250 psi
155.1 bar
Valves1 to 4
Pump flow50 gpm
189.3 lpm
SCV flow30 gpm
113.6 lpm
Steering flow30 gpm
113.6 lpm
Steering press.2500 psi
172.4 bar
Tractor hitch
Rear TypeIVN/3 OptOptional
Rear lift (at 24"/610mm)13,000 lbs
5896 kg
Dimensions & Tires
Wheelbase133 inches
337 cm
Weight20230 to 31670 pounds
Front tire710/70R38
Rear tire710/70R38
Full dimensions and tires ...
9882 Serial Numbers
Location:Rear lower-left side of the tractor cab, just above platform.
1996D103584
1997D104389
1998D106500
1999D107868

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps130
Charging volts12
Batteries3
Battery CCA950
Battery volts12
Battery GroupSAE31
References

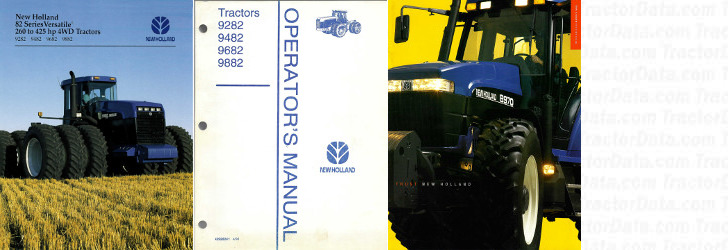

9882 references literature
82 Series Versatile 260 to 425 hp 4WD Tractors published in 1995, by New Holland
Operator's Manual Tractors 9282, 9482, 9682 and 9882 (42928241) published in 1996
North American Buyer's Guide published in 1997, by New Holland
