New Holland 9682 Transmission


New Holland 9682 tractor photo
1996 - 2000
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built
Series map:
9482
9682
9882
310.0hp
360.0hp
425.0hp
Transmission options
12-speed partially synchronized
12-speed full power shift
Transmission
TransmissionQuadra-Sync
Typepartially synchronized
Gears12 forward and 4 reverse
Clutch11-inch hydraulic wet disc
Four speeds (1-4) in three ranges (L/M/H) plus reverse range. Speed changes are synchronized using the clutch. Tractor must be stopped to shift ranges. Depressing the clutch fully activates a transmission brake, it is recommended to depress it two-thirds when shifting gears.
Speeds
With 20.8R42 rear tires.
9682 Quadra-Sync partially synchronized speeds
Shift Pattern

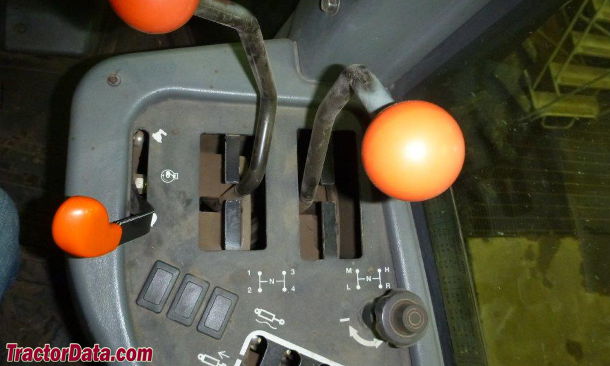

New Holland 9682 transmission controls
Transmission
TransmissionPower Shift
Typefull power shift
Gears12 forward and 2 reverse
Clutch9-inch hydraulic
Power shift transmission operated with a single control lever. Lever is moved ahead for forward range and to the back for reverse range, the neutral-lock button must be pressed to move the lever into range. Pushing right up-shifts and left down-shifts. Transmission always begins in first gear. Pressing the clutch while in motion will cause the transmission to automatically down-shift to match ground speed.
Speeds
With 20.8R42 rear tires.
9682 Power Shift full power shift speeds
