Tractors > CaseIH > Puma 195

CaseIH Puma 195 - transmission

CaseIH Puma 195 tractor photo
2007 - 2010   Puma Series
Row-Crop tractor
Next model:CaseIH Puma 200
Series next:CaseIH Puma 210
Series back:CaseIH Puma 180
more CaseIH Puma 195 specifications...






Transmission:

Type:full power shift
Gears:17 forward and 6 reverse
The 17-speed powershift transmission was standard on 2WD models.


Transmission:

Type:full power shift
Gears:18 forward and 6 reverse
On 4WD models the 18-speed transmission was standard equipment.
Speeds:

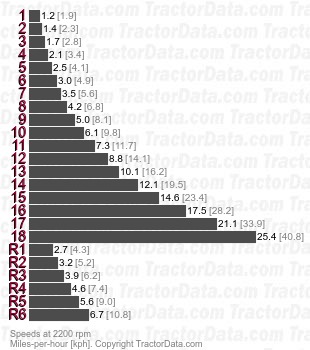

Puma 195  full power shift speeds


Transmission:

Transmission:EconoGear
Type:full power shift
Gears:19 forward and 6 reverse
Clutch:electro-hydraulic wet disc
The 19-speed EconoGear transmission provides a transport gear that operates at reduced RPM.
Speeds:19th gear at 1700 RPM.

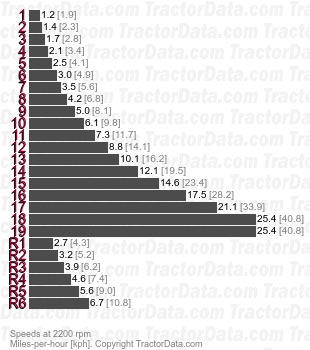

Puma 195 EconoGear full power shift speeds


Transmission:

Type:continuously variable transmission (CVT)
Gears:infinite forward and reverse
CVT first available on the Puma 195 starting in late 2008
Speeds:

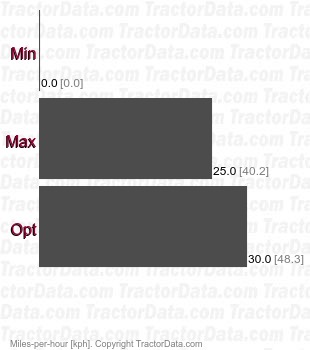

Puma 195  continuously variable transmission (CVT) speeds
