Montana 4940
| | 2005 - 2009 |
| Compact Utility tractor | | LG built |
|
Series map:
4920
4940
5720
49.0hp
49.0hp
57.0hp
| Production |
| Distributor | Montana
|
| Manufacturer | LG
|
| Compact Utility tractor |
| Montana 4940 Power |
| Engine | 49 hp
36.5 kW
|
| Mechanical |
| Four-wheel drive |
| Differential lock | mechanical rear
|
| Power steering |
| Wet disc brakes |
| Two-post ROPS. Big Sky cab optional. |
| Photos |
| No photos of the Montana 4940 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Hydraulics |
| Valves | 2
|
| Pump flow | 8.43 gpm
31.9 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position and draft control
|
| Rear lift (at ends) | 3197 lbs
1450 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540 (1.375)
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 45
|
| Battery volts | 12
|

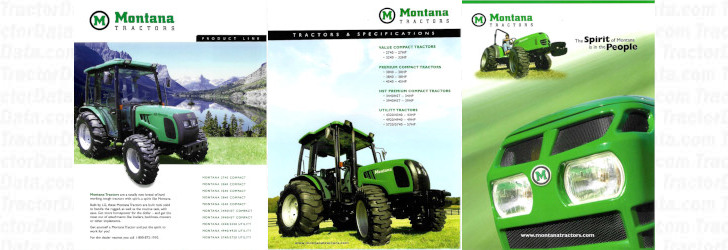

| References |
 |
| Product Line published in 2004, by Montana |
| Tractors & Specifications published in 2005, by Montana |
| Corporate Guide published in 2005, by Montana |
