Tractors > CaseIH > MX305 Magnum

CaseIH MX305 Magnum - tests

CaseIH MX305 Magnum tractor photo
2006 - 2007   Magnum Series
Row-Crop tractor
Previous model:CaseIH MX285
Next model:CaseIH Magnum 305
Series back:CaseIH MX275
more CaseIH MX305 Magnum specifications...






OCED Tractor Test 1913:

Nebraska summary:585

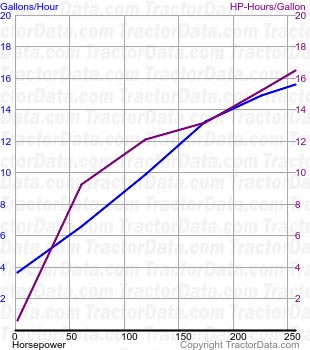

MX305 Magnum fuel use from test 585
Test Date:October 24 - November 14, 2007
Type:Diesel 19/4 4WD
PTO power (max):299.70 hp [223.5 kW]
PTO fuel use (max):17.0 gal/hour [64.3 l/hour]
PTO power (rated engine speed):256.66 hp [191.4 kW]
PTO fuel use (engine speed):15.6 gal/hour [59.0 l/hour]
PTO power (rated PTO speed):299.7 hp [223.5 kW]
PTO fuel use (PTO speed):16.9 gal/hour [64.0 l/hour]
Drawbar power (max):220.34 hp [164.3 kW]
Drawbar fuel use (max):15.6 gal/hour [59.0 l/hour]
Drawbar pull (max):20366 lbs [9238 kg]
Max pull gear:6
Test report:PDF file
