CaseIH MX245 Magnum - transmission

CaseIH MX245 Magnum tractor photo
2006 - 2007   Magnum Series
Row-Crop tractor
Previous model:CaseIH MX230
Next model:CaseIH Magnum 245
Series next:CaseIH MX275
Series back:CaseIH MX215
more CaseIH MX245 Magnum specifications...






Transmission:

Type:full power shift
Gears:18 forward and 4 reverse
Clutch:electro-hydraulic wet disc


Transmission:

Type:full power shift - overdrive
Gears:19 forward and 4 reverse
Clutch:electro-hydraulic wet disc
Speeds:

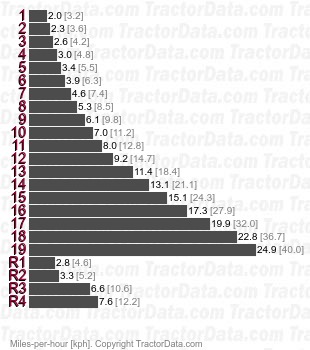

MX245 Magnum  full power shift - overdrive speeds


Transmission:

Type:Creeper
Gears:23 forward and 6 reverse
