International Harvester TD-5 Tests
|
|
| Nebraska Tractor Test 755 | |||
| |||
| Nebraska Tractor Test 755 | |
| Diesel Torque Amplifier crawler August 24 - September 3, 1960 Link: Nebraska Tractor Test 755 file | |
| PTO performance | |
| Power at rated engine speed | 33.25 hp 24.8 kW |

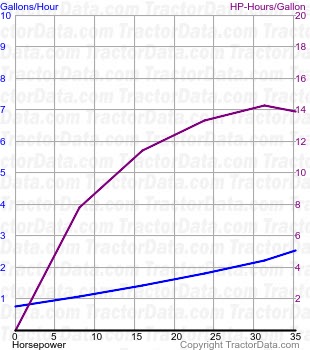

| Fuel use | 2.4 gal/hour 9.1 l/hour |
| Drawbar performance | |
| Max power | 29.61 hp 22.1 kW |
| Fuel use | 2.5 gal/hour 9.5 l/hour |
| Gear 2 used for power test. | |
| Max pull | 7574 lbs 3435 kg |
| Gear 1 used for pull test. | |
