John Deere 9100 - transmission

John Deere 9100 tractor photo
1997 - 2001   9000 Series
Four-wheel Drive (4WD) tractor
Next model:John Deere 9120
Series next:John Deere 9200
more John Deere 9100 specifications...






Transmission:

Transmission:John Deere Syncro
Type:partially synchronized
Gears:12 forward and 3 reverse
Oil capacity:147.2 qts [139.3 L] (100mm axle)
 151.6 qts [143.5 L] (110mm axle)
 151.2 qts [143.1 L] (PTO 100mm axle)
 155.6 qts [147.3 L] (PTO 110mm axle)
 140 qts [132.5 L] (SN030001+)
Three speeds (1-3 and reverse) in four ranges (A-D). Synchronized shifting between speeds using the clutch. Tractor must be stopped, and clutch used, to shift ranges. Reverse is not available in the highest (D) range.
Speeds:With 20.8R38 tires.

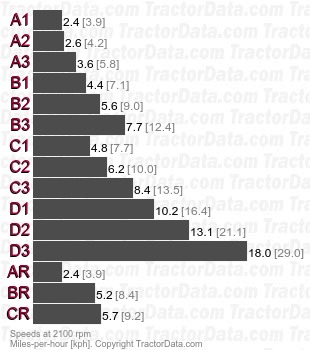

9100 Syncro partially synchronized speeds


Transmission:

Transmission:John Deere PowrSync
Type:partial power shift
Gears:24 forward and 6 reverse
Oil capacity:147.2 qts [139.3 L] (100mm axle)
 151.6 qts [143.5 L] (110mm axle)
 151.2 qts [143.1 L] (PTO 100mm axle)
 155.6 qts [147.3 L] (PTO 110mm axle)
 140 qts [132.5 L] (SN030001+)
Three speeds (1, 2, 3 and reverse) in four ranges (A-D) plus high-low power shift. Speeds and ranges may be shifted on the move, using the clutch. High-low power shift for each speed using lever.
Speeds:With 20.8R38 tires.

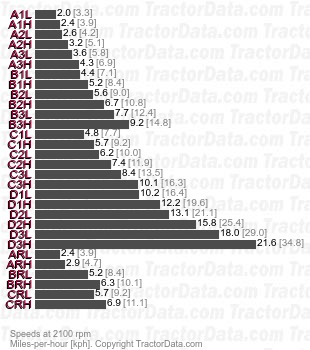

9100 PowrSync partial power shift speeds


Transmission:

Transmission:John Deere PowerShift
Type:full power shift
Gears:12 forward and 2 reverse
Oil capacity:64 qts [60.6 L] (early)
 56 qts [53.0 L] (SN030001+)
 60 qts [56.8 L] (no PTO early)
 54 qts [51.1 L] (no PTO late)
 120 qts [113.6 L] (axles early)
 108 qts [102.2 L] (axles SN030001+)
Speeds:With 20.8R38 tires.

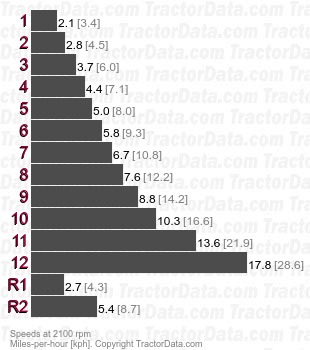

9100 PowerShift full power shift speeds
