New Holland TL90 Transmission
|
|
| Transmission options | |
| 12-speed mechnical shuttle | |
| 24-speed two-speed power shift | |
| 24-speed power shuttle |
| Transmission | |

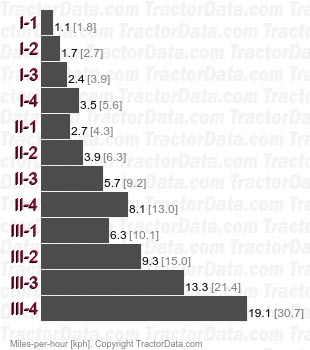

| Transmission | Synchro Command |
| Type | mechnical shuttle |
| Gears | 12 forward and reverse |
| Available with creeper ranges providing 20 forward and 8 reverse speeds. | |
| Speeds | |
| With 30KPH option and 600/65-34 rear tires. Reverse speeds are 10% slower than forward. | |
|
| Transmission | |

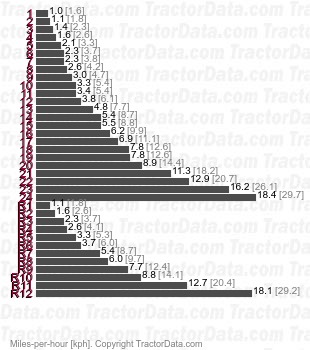

| Type | two-speed power shift |
| Gears | 24 forward and 12 reverse |
| Transmission | |
| Type | power shuttle |
| Gears | 24 forward and reverse |
| Four synchronized gears in three ranges with two-speed push-button power shift and power shuttle. | |
