TractorData.com - information on all makes and models of tractors
Tractors > New Holland > TC33
      -Brand search:


    New Holland TC33

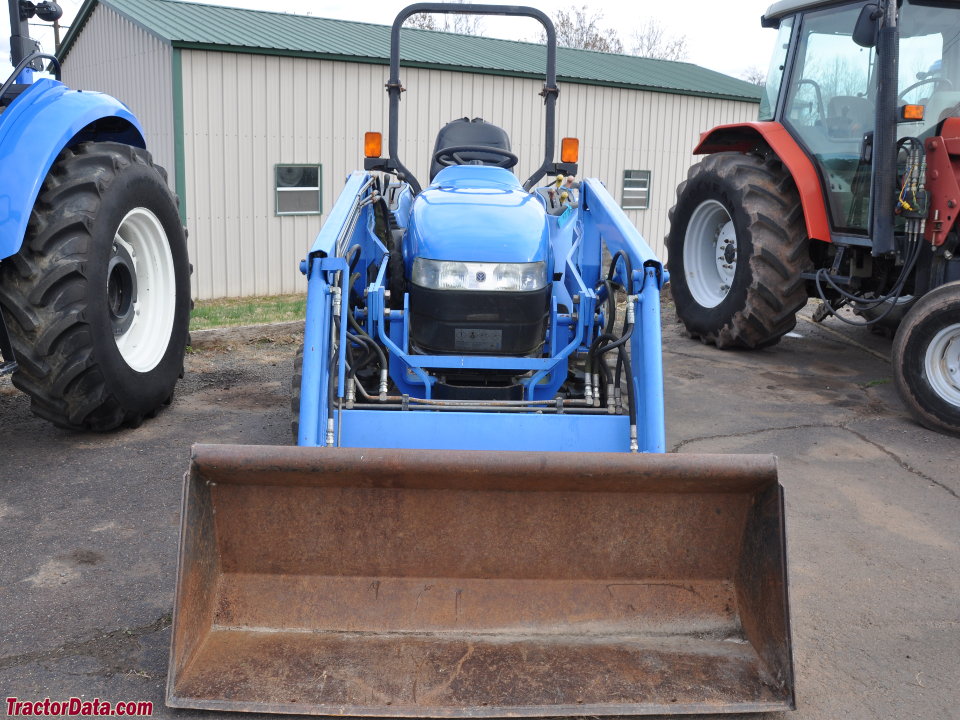

    New Holland TC33 tractor photo
    1999 - 2003   Boomer TC Series
    Compact Utility tractor
    Next model:New Holland TC33DA
    Larger:New Holland TC35
    Smaller:New Holland TC29






    Production:

    Manufacturer:New Holland
    Original price (USD):$17,000 (2000)


    Variants:

    TC33:base model
    TC33D:deluxe


    New Holland TC33 Engine:

       Shibura 1.5L 3-cyl diesel
    full engine details ...


    Capacity:

    Fuel:7.3 gal [27.6 L]


    3-Point Hitch:

    Rear Type:1
    Rear lift (at 24"/610mm):1,635 lbs [741 kg]


    Power Take-off (PTO):

    Rear PTO:transmission
     live (optional)
    Rear RPM:540
    Mid PTO:optional
    Mid RPM:2000


    Dimensions & Tires:

    Wheelbase:63 inches [160 cm]
    SuperSteer Wheelbase:72 inches [182 cm]
    Weight:2334 to 2588 pounds
    Front tire:5.50-16
    Rear tire:11.2-24
    full dimensions and tires ...


    New Holland TC33 attachments:

     front-end loader
    all TC33 attachments ...


    TC33 Serial Numbers:


    - Serial numbers unknown -



    New Holland TC33 Power:

    Engine (gross):33 hp [24.6 kW]
    PTO (claimed):28.6 hp [21.3 kW] (gear)
     26.9 hp [20.1 kW] (hydro)


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Steering:hydrostatic power
    Cab:Two-post ROPS.


    Hydraulics:

    TC33 Pump flow:6.6 gpm [25.0 lpm]
    TC33D Pump flow:7.6 gpm [28.8 lpm]
    TC33 Total flow:9.6 gpm [36.3 lpm]
    TC33D Total flow:12.2 gpm [46.2 lpm]
    TC33 Steering flow:3.5 gpm [13.2 lpm]
    TC33D Steering flow:5.1 gpm [19.3 lpm]


    Electrical:

    Ground:negative


    Battery:

    Number:1
    Volts:12
