Tractors > Lamborghini > Champion 120

Lamborghini Champion 120 - transmission

Lamborghini Champion 120 tractor photo
1998 - 2004   Champion Series
Row-Crop tractor
more Lamborghini Champion 120 specifications...






Transmission:

Type:9-speed power shift
Gears:18 forward and reverse
Clutch:hydraulic wet disc
Nine power shift gears in two ranges with power shuttle.
Speeds:With 520/70R38 rear tires. Rear speeds are aboutg 9% faster than forward.

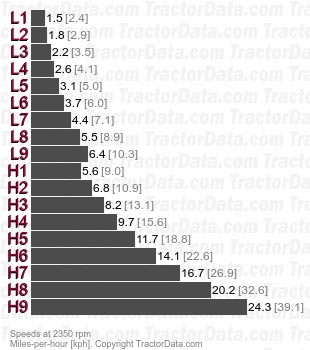

Champion 120  9-speed power shift speeds


Transmission:

Type:creeper
Gears:27 forward and reverse
Speeds:

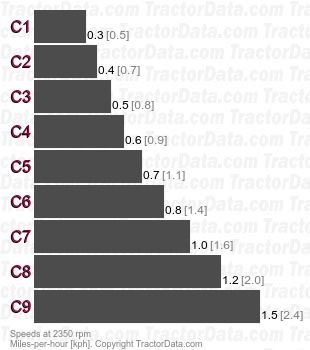

Champion 120  creeper speeds
