| | 1985 - 1996 |
| Row-Crop tractor |
|
Series map:
956
1106
1306
70.8kw
82.0kw
93.2kw
| Transmission options |
| 9-speed |
| 24-speed |
| 20-speed creeper |
| Transmission |
| Gears | 9 forward and 3 reverse
|
| Clutch | hydraulic cerametallic disc
|

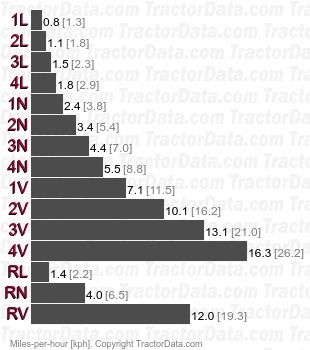

| Four gears (1-4) plus reverse (R) in three ranges (L/N/V). |
| Speeds |
| With 18.4/15-34 rear tires. |
|
| Transmission |
| Gears | 24 forward and 12 reverse
|
| Clutch | hydraulic cerametallic disc
|
| Four gears (1-4) in three ranges (S/N/F) with two-speed high-low shift. |

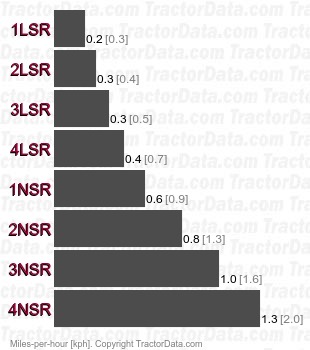

| Transmission |
| Type | creeper
|
| Gears | 20 forward and 12 reverse
|
| Speeds |
| With 18.4/15-34 rear tires. |
|
