Tractors > Volvo > 470

Volvo 470

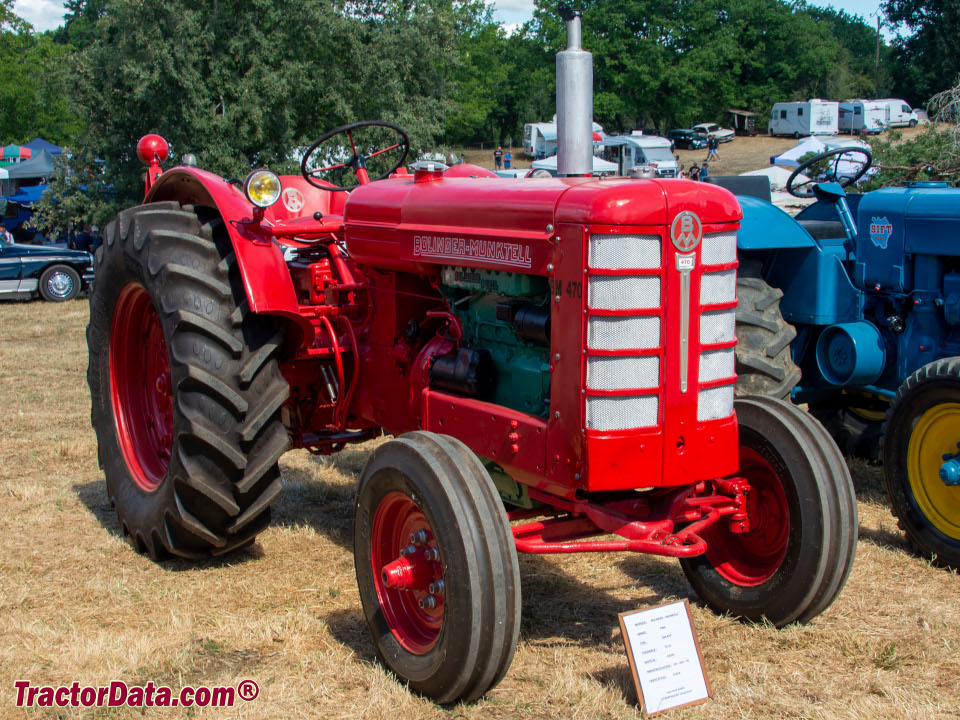

Volvo 470 tractor photo
1959 - 1966






Production:

Manufacturer:Volvo
Total built:3695


Volvo 470 Engine:

   Bolinder 5.0L 4-cyl diesel
full engine details ...


Capacity:

Fuel:29.1 gal [110.1 L]


3-Point Hitch:

Rear Type:I
Rear lift:2866 lbs [1300 kg]


Power Take-off (PTO):

Rear RPM:540 (1.375)
Engine RPM:540@1500


Dimensions & Tires:

Wheelbase:85.6 inches [217 cm]
Weight:7408 lbs [3360 kg]
Front tire:7.50-18
Rear tire:16.9/14-34
full dimensions and tires ...


470 Serial Numbers:


how to read serial numbers...



Volvo 470 Power:

Engine (gross):79 hp [58.9 kW]
Engine (net):73 hp [54.4 kW]


Mechanical:

Chassis:4x2 2WD
Steering:manual
Brakes:mechanical shoe
Cab:Open operator station. Four-post ROPS and cab available.


Battery:

Volts:12
Amp-hours:152
