Tractors > McCormick Intl > MTX150

McCormick Intl MTX150

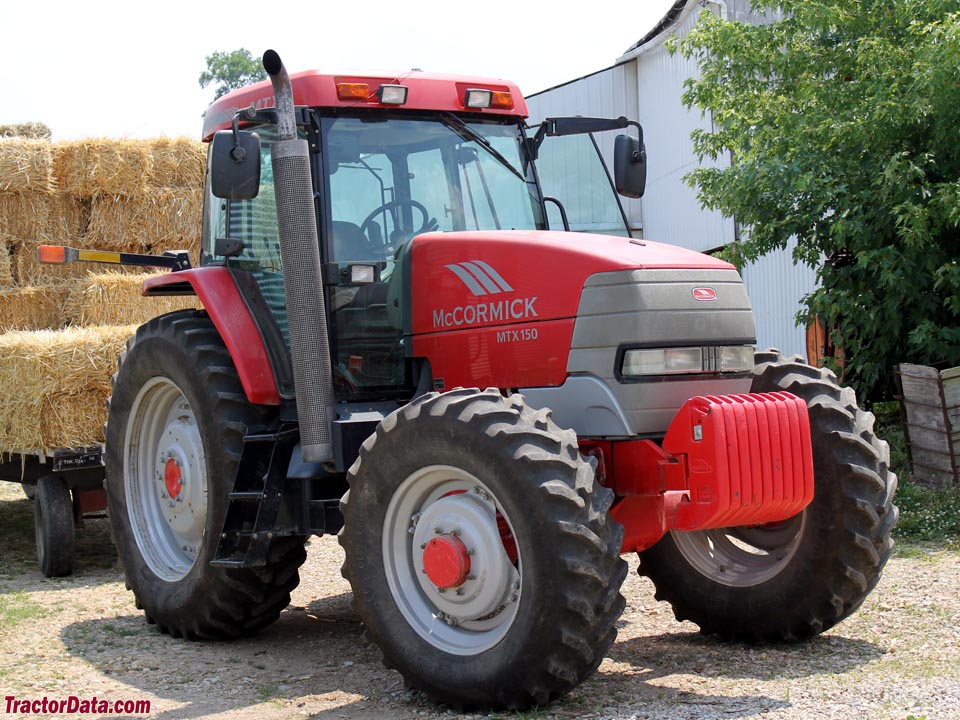

McCormick Intl MTX150 tractor photo
2004 - 2007   MTX Series
Row-Crop tractor
Previous model:McCormick Intl MTX140
Series next:McCormick Intl MTX165
Series back:McCormick Intl MTX135






Production:

Manufacturer:McCormick Intl
Factory:Doncaster, England


McCormick Intl MTX150 Engine:

   Iveco 6.8L 6-cyl diesel
full engine details ...


Capacity:

Fuel:70.0 gal [264.9 L]


3-Point Hitch:

Rear Type:IIIN
Control:electronic lower link draft sensing
Rear lift:14557 lbs [6603 kg]


Power Take-off (PTO):

Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540/1000


Dimensions & Tires:

Wheelbase:107.1 inches [272 cm]
Weight:13582 lbs [6160 kg]
Front tire:16.9R28
Rear tire:20.8R38
full dimensions and tires ...


MTX150 Serial Numbers:


- Serial numbers unknown -



McCormick Intl MTX150 Power:

Engine:152 hp [113.3 kW]
PTO (claimed):130 hp [96.9 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:differential hydraulic wet disc
Cab:Cab standard with air-conditioning.


Hydraulics:

Type:pressure flow compensating
Pump flow:28.8 gpm [109.0 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:95
 120 (optional)


Battery:

Volts:12
