McCormick Intl CX105 Transmission

McCormick Intl CX105 tractor photo
2003 - 2007
CX Series
Utility tractor
Transmissions overview
24-speed partial power shift
8-speed synchro shuttle
16-speed partial power shift
Type:partial power shift
Gears:24 forward and reverse
Clutch:wet disc
Eight gears with a three-range power shift for each gear. Optional creeper provides 36 gears forward and reverse.

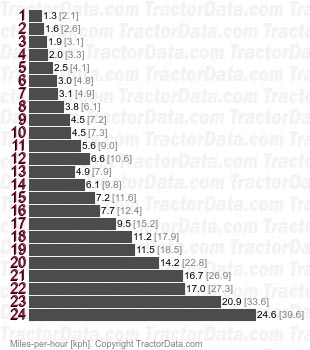

CX105 Xtrashift partial power shift speeds
Type:synchro shuttle
Gears:8 forward and reverse
Clutch:dry disc
With 18.4-34 rear tires.

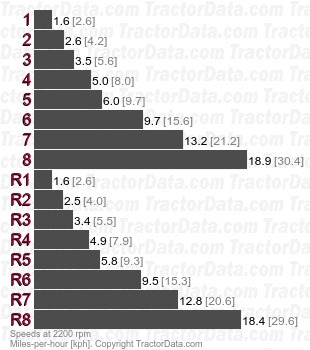

CX105  synchro shuttle speeds
Type:partial power shift
Gears:16 forward and 8 reverse
Clutch:dry disc
Four gears in two ranges with two-speed power shift.
