Tractors > McCormick Intl > CX85

McCormick Intl CX85 - transmission

McCormick Intl CX85 tractor photo
2003 - 2007   CX Series
Utility tractor
Series next:McCormick Intl CX95
Series back:McCormick Intl CX75
more McCormick Intl CX85 specifications...






Transmission:

Transmission:Xtrashift
Type:partial power shift
Gears:24 forward and reverse
Clutch:wet disc
Eight gears with a three-range power shift for each gear. Optional creeper provides 36 gears forward and reverse.


Transmission:

Type:synchro shuttle
Gears:8 forward and reverse
Clutch:dry disc


Transmission:

Type:partial power shift
Gears:16 forward and 8 reverse
Clutch:dry disc
Four gears in two ranges with two-speed power shift.

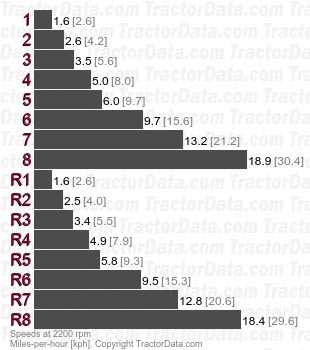

Speeds:With 16.9R34 rear tires.

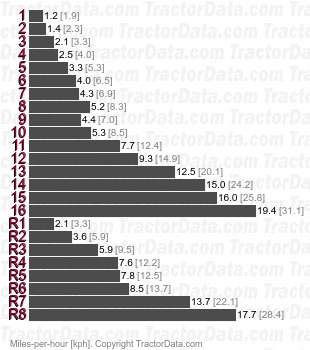

CX85  partial power shift speeds
