McCormick Intl CX75 Transmission


McCormick Intl CX75 tractor photo
2003 - 2007
CX Series
Utility tractor
Series:CX75CX85
Transmissions overview
24-speed partial power shift
8-speed synchro shuttle
16-speed partial power shift
Transmission
Transmission:Xtrashift
Type:partial power shift
Gears:24 forward and reverse
Clutch:wet disc
Eight gears with a three-range power shift for each gear. Optional creeper provides 36 gears forward and reverse.
Transmission
Type:synchro shuttle
Gears:8 forward and reverse
Clutch:dry disc
Speeds
With 18.4-34 rear tires.

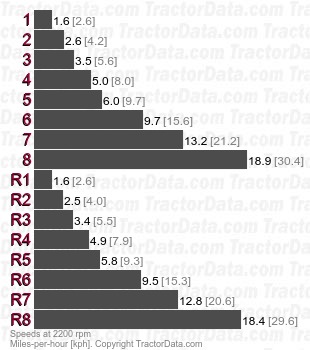

CX75  synchro shuttle speeds
Transmission
Type:partial power shift
Gears:16 forward and 8 reverse
Clutch:dry disc
Four gears in two ranges with two-speed power shift. Optional creeper provides 24-forward and 12-reverse.
Speeds
With 16.9R34 rear tires.

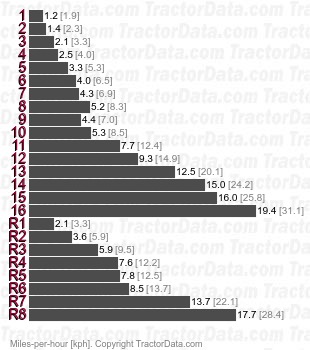

CX75  partial power shift speeds
