Tractors > John Deere > 8430

John Deere 8430 - tests

John Deere 8430 tractor photo
2006 - 2009   8030 Series
Row-Crop tractor
Previous model:John Deere 8420
Next model:John Deere 8320R
Series next:John Deere 8530
Series back:John Deere 8330
more John Deere 8430 specifications...






OCED Tractor Test 1873:

Nebraska summary:527

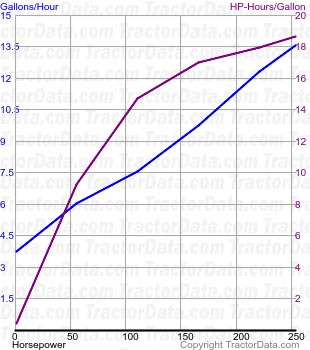

8430 fuel use from test 527
Test Date:March 14 - April 5, 2006
Type:Diesel PowerShift 4WD
PTO power (max):289.26 hp [215.7 kW]
PTO fuel use (max):14.9 gal/hour [56.4 l/hour]
PTO power (rated engine speed):253.05 hp [188.7 kW]
PTO fuel use (engine speed):13.6 gal/hour [51.5 l/hour]
PTO power (rated PTO speed):273.44 hp [203.9 kW]
PTO fuel use (PTO speed):14.4 gal/hour [54.5 l/hour]
Drawbar power (max):223.57 hp [166.7 kW]
Drawbar fuel use (max):13.4 gal/hour [50.7 l/hour]
Drawbar pull (max):34,591 lbs [15690 kg]
Max pull gear:3
Test report:PDF file


OCED Tractor Test 1874:

Nebraska summary:528

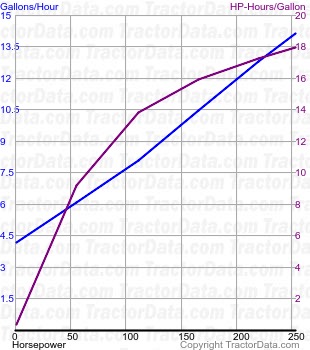

8430 fuel use from test 528
Test Date:March 16 - April 5, 2006
Type:Diesel IVT 4WD
PTO power (max):283.18 hp [211.2 kW]
PTO fuel use (max):15.0 gal/hour [56.8 l/hour]
PTO power (rated engine speed):253.01 hp [188.7 kW]
PTO fuel use (engine speed):17.9 gal/hour [67.8 l/hour]
PTO power (rated PTO speed):272.59 hp [203.3 kW]
PTO fuel use (PTO speed):14.8 gal/hour [56.0 l/hour]
Drawbar power (max):211.28 hp [157.6 kW]
Drawbar fuel use (max):13.6 gal/hour [51.5 l/hour]
Drawbar pull (max):34,671 lbs [15726 kg]
Max pull gear:3.6 kph
Test report:PDF file
