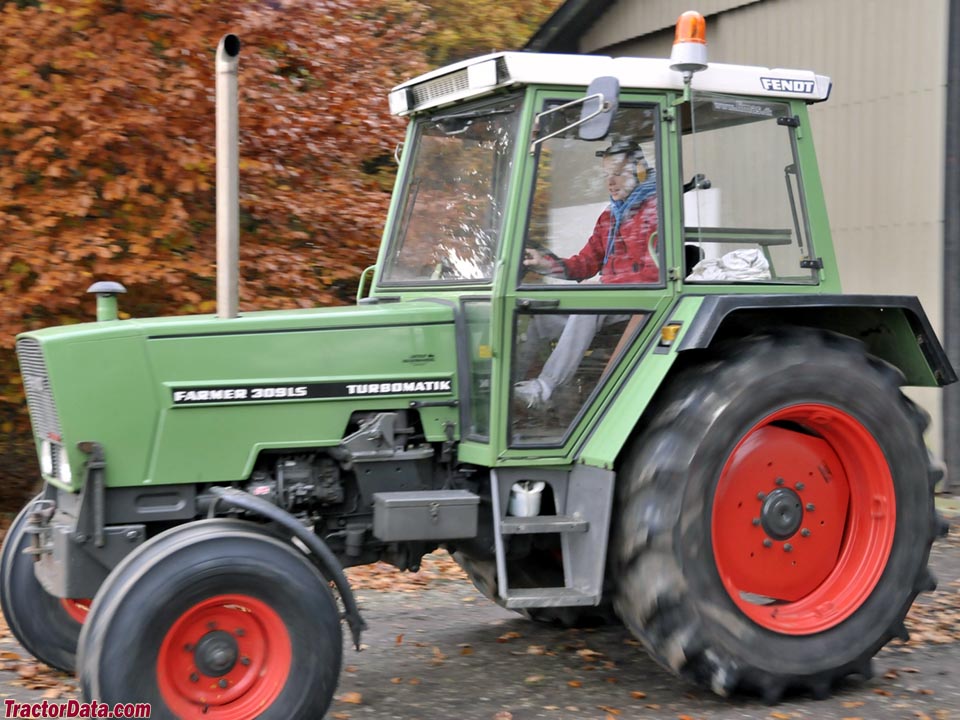

Fendt Farmer 309LS
| | 1981 - 1987 |
| Farmer 300 Series | | Row-Crop tractor |
|
| Production |
| Manufacturer: | Fendt
|
| Type: | Row-Crop tractor
|
| Fendt Farmer 309LS Power |
| Engine: | 86 hp
64.1 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Cab standard with heat. Air-conditioning optional.
|
| Transmissions: | 15-speed synchromesh
|
| | 21-speed
|
 Transmission details ... |
| Hydraulics |
| Type: | open center
|
| Pump flow: | 10.6 gpm
40.1 lpm
|
| Steering flow: | 9.3 gpm
35.2 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift: | 8158 lbs
3700 kg
|
| Front Hitch: | II*Optional
|
| Front lift: | 5534 lbs
2510 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| | 540/750
|
| | 540/750/1000
|
| Front PTO: | independent
|
| Front RPM: | 1000
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 33
|
| | 55*Optional
|
| Battery volts: | 12
|
| Battery AH: | 110
|
